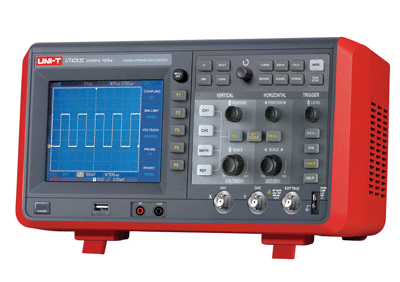

Bench Type DSO Digital Storage Oscilloscope UTD4202C
Zoom Browse
Product Name: Bench Type DSO Digital Storage Oscilloscope UTD4202C
Product Numbers: UTD4202C
Product Specifications: 200MHz, 2GS/s sample rate
Product Unit: Bench Type DSO
Product Remark: Full colour LCD, 2 channel
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Oscilloscope
Product Details
【DateTime:2011-07-20 Browse:】【Font: Big Mid Small】【Print】【Close
Feature UTD4202C
Bandwidth 200 MHz
Rise Time ≤1.8 ns
Sample Range 2GS/s
Vertical Sensitivity 2mV ~ 5V/div
Record Length (Max) 1024k
Sample Rate Real time 2GS/s, Equivalent: 50GS/s
Scan Time Base 2ns ~ 50s/div
Trigger Type Edge, Pulse, Video, Slope and LA
Automatic Waveform Measurements 27
Ports Standard: USB Device, USB Host; PASS/FAIL, LA interface, Multimeter interface, LAN and GPIB
Mathematics Add, Subtract, Multiply, FFT
Applications College Education, R&D, Electronic product assemble line, Industrial Control etc.
Display Digital Multimeter and Logic Analyzer
GENERAL CHARACTERISTICS
Power 100 - 240VACRMS, 45Hz - 440Hz, CAT II
LCD Size Diagonal 145mm (5.7 inches)
Product Color Red and Grey
Product Net Weight 3.8kg (Excluding packaging)
Product Size 330mm x 165mm x 165mm
Standard Accessories Probe x 2 (1x, 10x switchable), Logic Analyzer Probe UT-P06, Current-to-Voltage Convertor module, (UT-M03, UT-M04)
Power Cord and English Manual
Standard Individual Packing Gift Box
Standard Quantity Per Carton 2 pcs
Standard Carton Measurement 540 x 425 x 325mm (0.063 CBM Per Export Carton)
Standard Carton Gross Weight Around 13.7kg
