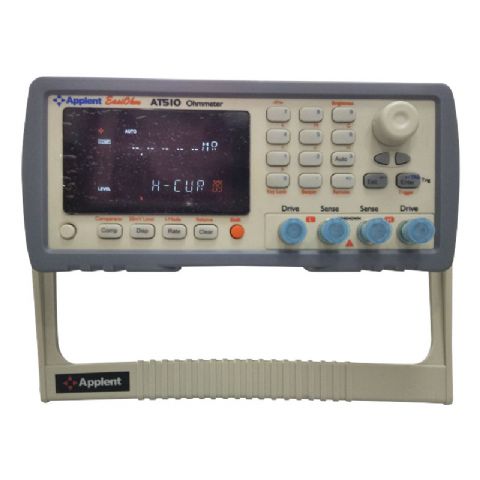

Pure DC Resistance Meter Micro Ohm Meter
Feature
- High brightness, ultra clear four-color VFD Display.
- Auto Zero-Adjust for each range
- Comparator Function: Stores up to 30 sets of measurement conditions HI/IN/LOW/GD/NG VFD Show or HANDLER out.
- Four-terminal resistance measurement.
- Build-in RS-232C, Handler(EXT-I/O) Interface
- Beeper and brightness can be adjusted.
- Internal,Manual,External and Remote Trigger.
- USB Interface(Optional).
- SCPI compatible command sets.
- Keypad lock function.
- Data Hold function.
|
Precision Resistance Meter
|
|
SPECIFICATIONS
|
|
Parameter
|
DC resistance
|
|
Accuracy
|
0.01%
|
|
Measurement Range
|
0.1μΩ ~ 110MΩ
|
|
Signal Source
|
Current range: 1μA~1A
|
|
Range
|
Automatic and manual with 11 ranges
|
|
Speed
|
150 times/second, 10 times/second, 2 times/second
|
|
Result Display
|
Show, ΔABS,Δ% and sorting result
|
|
Max reading
|
104000
|
|
Correction
|
Open & short reset
|
|
Comparator
|
30 groups record, NG-LO, GD-IN, NG-HI display and output,
adjustable beep and volume
|
|
Trigger
|
Internal, manual, external and remote
|
|
Configuration Interface
|
RS232C, Handler interface (PLC interface)
|
|
Test terminal
|
4 terminal shielding ( 2 check terminal and 2 driving terminal)
and external shielding ground section
|
|
Others
|
Four-color vacuum fluorescent screen VFD display
Keypad lock and data hold functionOptional temperature compensation interface
(2010 updated Rev)
|
|
GENERAL FEATURES
|
|
Power Supply
|
Voltage: 198V AC - 240V AC Frequency: 50/60Hz Power: Max 15VA
|
|
Dimension & Weight
|
External size: 264mm (Width)x107mm (Height)x350mm (Depth)
Inside size: 216mm (Width)x88mm (Height)x323mm (Depth)
4kg
|
Accessories:
ATL501: Kelvin clip
ATL108: 232 communication cable
