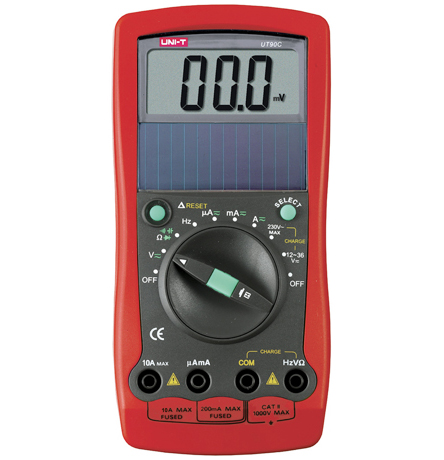

The Model UT90C Digital MultiMeters (hereafter referred to as “the Meter”)Display Symbols is a 4000 counts, 3 3/4 digits environment protected auto Measurement Operationranging electrical tester with stabilized functions, safe A.   AC & DC Voltage Measurement design, and reliable performance.



SPECIFICATIONS

Basic Functions	Range	Best Accuracy
DC Voltage	400mV/4V/40V/400V/1000V	±(0.8%+1)
AC Voltage	4V/40V/400V/750V	±(1%+5)
DC Current	400mA/4000mA/40mA/400mA/4A/10A	±(1%+2)
AC Current	400mA/4000mA/40mA/400mA/4A/10A	±(1.5%+5)
Resistance	400W/4kW/40kW/400kW/4MW/40MW	±(1%+2)
Capacitance	40nF/400nF/4mF/40mF/100mF	±(3%+5)
Frequency	10Hz-10MHz	±(0.1%+3)
Special Functions
Fused 10A Range		A
mA Fuse		Traditional
Auto Ranging		A
Diode		A
Continuity Buzzer		A
Relative Mode		A
Data Hold		A
Full Icon Display		A
Sleep Mode		A
Low Battery Display		A
Input Impedance for DC Voltage Measurement	Around 10MW	A
Max. Display	3999	A

GENERAL CHARACTERISTICS

Power	Charging At AC 230V or AC/DC 12-36V or Solar
LCD Size	60 x 26mm
Product Colour	Red and Grey
Product Net Weight	340g
Product Size	179 x 88 x 39mm
Standard Accessories	Test Lead, English Manual, Holster
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	40pcs
Standard Carton Measurement	598 x 418 x 340mm (Around 0.085 CBM Per Standard Carton)
Standard Carton Gross Weight	23kg
