| Product Name: Function Generators (FM,AM,PM,PWM and FSK) |
| Product Numbers: FUGE-5200 |
| Product Specifications: 10μHz~3MHz,10μHz~5MHz, |
| Product Unit: 10μHz~10MHz,10μHz~20MHz |
| Product Remark: Sample Rate:100 MSa/s |
| Product Class:Measuring and Testing Instruments > Electronic test Instruments > DDS Function Generators |
|

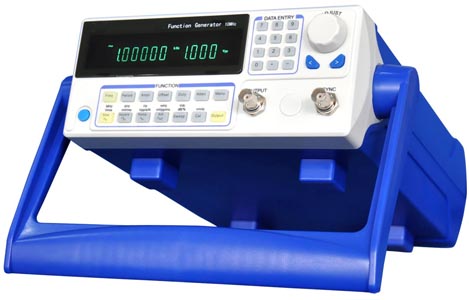

 Product Details Function Generators (FM,AM,PM,PWM and FSK)
FEATURES
- High performance and cost effectiveness in a compact package
- Perfect modulation functions including FM,AM,PM,PWM and FSK
- Standard interface of USB Device
SPECIFICATION
|
Main Specifications
|
FUGE-5203
|
FUGE-5205
|
FUGE-5210
|
FUGE-5220
|
|
Frequency
|
Range
|
Sine
|
10μHz~3MHz
|
10μHz~5MHz
|
10μHz~10MHz
|
10μHz~20MHz
|
|
Square
|
10μHz ~ 5MHz
|
|
Others
|
10μHz ~ 1MHz
|
|
Resolution
|
10μHz, 6 digits
|
|
Waveform
|
Type
|
16 waveforms including Sine, Square, Ramp, Exponent, Logarithm, Noise, etc
|
|
Length
|
1024 points
|
|
Sample Rate
|
100 MSa/s
|
|
Amplitude Resolution
|
8 bits
|
|
Amplitude
|
Range
|
Frequency≤8MHz, 0 ~ 10Vpp (50Ωload), 0 ~ 20Vpp (open-circuit load)
Frequency>8MHz, 0 ~ 9Vpp (50Ωload), 0 ~ 18Vpp (open-circuit load)
|
|
Resolution
|
5mVpp (Amplitude>2Vpp) 0.5mVpp(Amplitude≤2Vpp)
|
|
Offset
|
Range
|
±5Vdc(50Ωload), ±10Vdc(open-circuit load)
|
|
Resolution
|
5mVdc
|
|
Sweep
|
Range
|
Set start and stop points arbitrarily
|
|
Time
|
50ms~ 500s
|
|
Type
|
Linear, Logarithmic
|
|
SYNC
|
Waveform
|
Square, edge time ≤ 20ns
|
|
Amplitude
|
TTL compatible
|
|
FM,AM, PM,PWM Modulation
|
Carrier Waveform
|
16 waveforms, including Sine, Square, Ramp, etc. (Only Pulse for PWM）
|
|
Modulation Waveform
|
16 waveforms, including Sine, Square, Ramp, etc.
|
|
Modulation Frequency
|
40mHz ~ 20kHz
|
|
FSK
|
Carrier Waveform
|
16 waveforms, including Sine, Square, Ramp, etc.
|
|
Modulation Waveform
|
Square
|
|
FSK Rate
|
40mHz ~ 100kHz
|
|
Burst
|
Waveform
|
16 waveforms, including Sine, Square, Ramp, etc.
|
|
Repeat Period
|
1μs ~ 20s
|
|
Pulse Count
|
1 ~ 1000000 points
|
|
Dimensions &Weight
|
313/322×256×102 mm, Approx. 2.0kg
|
Package:
|
3-core power cord
|
1
|
|
CD(software+users guide)
|
1
|
|
