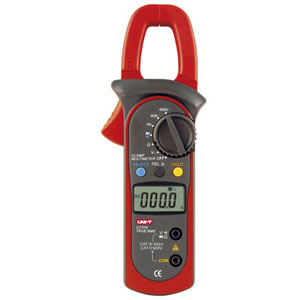

ACA & DCA Clamp Meters with True RMS
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| DC Voltage |
400mV/4V/40V/400V/600V |
±(0.8%+1) |
| AC Voltage |
4V/40V/400V/600V |
±(1%+5) |
| DC Current |
40A/400A |
±(2%+3) |
| AC Current |
40A/400A |
±(2.5%+5) |
| Resistance |
400W/4kW/40kW/400kW/4MW/40MW |
±(1%+2) |
| Frequency |
10Hz~1MHz |
±(0.1%+3) |
| Duty Cycle |
0.1%~99.9% |
YES |
| Special Functions |
|
|
| Auto Ranging |
|
YES |
| Diode |
|
YES |
| Continuity Buzzer |
|
YES |
| True RMS |
|
YES |
| Relative Mode |
|
YES |
| Data Hold |
|
YES |
| Sleep Mode |
|
YES |
| Low Battery Display |
|
YES |
|
Input Impedance for
DC Voltage Measurement
|
≥10MW
|
YES |
| Max. Display |
|
3999 |
GENERAL CHARACTERISTICS
| Power |
9V Battery (6F22) |
| LCD Size |
36 x 18mm |
| Product Colour |
Red and Grey |
| Product Net Weight |
200g |
| Product Size |
210 x 76 x 30mm |
| Standard Accessories |
Test Lead, English Manual, Carrying Bag |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
40pcs |
| Standard Carton Measurement |
535 x 490 x 330mm
(0.087 CBM Per Standard Carton)
|
| Standard Carton Gross Weight |
15kg |
