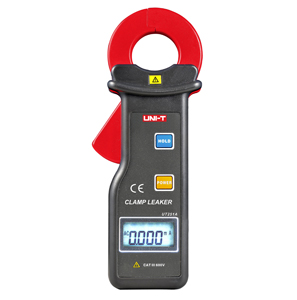

| Product Name: High-Pprecision Clamp Leakage Current Meter UT251A |
| Product Numbers: UT251A |
| Product Specifications: 0.001mA～60.00A |
| Product Unit: 0V～600V（50Hz/60Hz） |
| Product Remark: China Clamp Meter |
| Product Class:Measuring and Testing Instruments > Electronic test Instruments > Clamp Meters |
|
 Product Details UT251A High-Pprecision Clamp Leakage Current Meter is designed for the measurement of AC leakage current, carefully designed and manufactured using the latest CT technology and digital convergence technologies, has a small size, high precision, fully functional characteristics. Widely used in the field of electricity, communications, meteorology, railroad, oil field, construction, measurement, research and education institutions, and industrial and mining enterprises. Its sensor core to use a special alloy, magnetic shielding technology, and is almost free from the influence of external magnetic field, to ensure all year round without interruption to measurement accuracy, high stability, high reliability.
Featues:
Auto Ranging
RS-232 Data Transmission
Figure Hold
Data Storage
Auto Power-Off
Over Range Display
CE、IEC:1010-1、IEC:1010-2-032
CAT III 600V
|
Basic Function
|
Range |
Best Accuracy |
| Model |
|
UT251A |
| Leakage Current (A) |
Range |
0.001mA～60.00A |
±(1.5%+5) |
| Voltage（Frequency） |
0V～600V（50Hz/60Hz） |
√ |
| Resolution |
1uA |
| Special Features :- |
|
| Display Mode |
4 Digits LCD Display |
√ |
| Auto Ranging |
|
√ |
| Jaw Size |
|
25mm×30mm |
| RS-232 Data Transmission |
|
√ |
| Data Storage |
|
99 Groups |
| Peak Value |
|
√ |
| Figure Hold |
|
√ |
| Auto Power-Off |
5 Minutes |
√ |
| Low Battery Display |
≤7.2V |
√ |
| Over Range Display |
OL |
√ |
| Testing Method |
Clamp CT, points the way |
√ |
| GENERAL CHARACTERISTICS :- |
|
|
| Power |
6F22, 9V Alkaline Battery |
| LCD Size |
32mm X 15mm |
| Product Color |
Red + Grey |
| Product Weight |
120g |
| Product Size |
175mm X 70mm X 38mm |
| Standard Accessories |
Battery, Software CD-ROM, RS-232 Data Cable, Toolbox |
| Safety Level :- |
|
|
|
| CAT III 600V |
| Approval :- |
|
|
|
| CE、IEC:1010-1、IEC:1010-2-032 |
|
|
