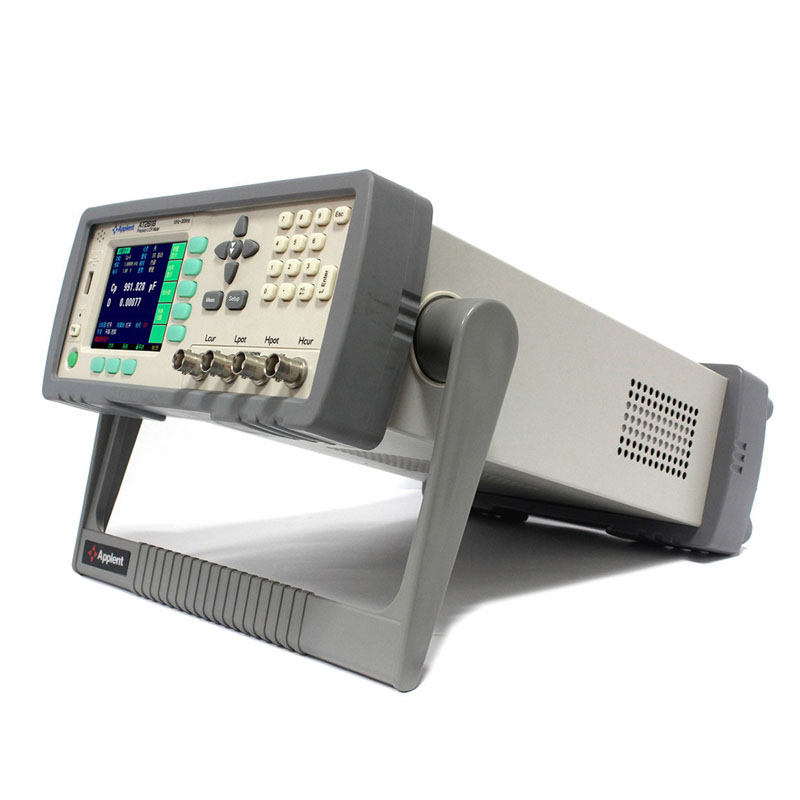

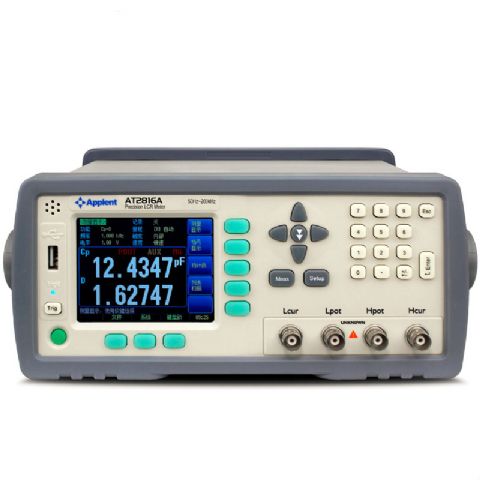

| Product Name: Digital LCR Meter With 5 Terminals |
| Product Numbers: LCRM-AT2816A |
| Product Specifications: Frequency: 50Hz-200kHz |
| Product Remark: Accuracy: 0.05% ±5 |
| Product Class:Measuring and Testing Instruments > Electronic test Instruments > LCR Meter |
|
 Product Details Digital LCR Meter With 5 Terminals
Specification
|
arameters
|
Cs-Rs, Cs-D, Cp-Rp, Cp-D,Lp-Rp, Lp-Q,Ls-Rs, Ls-Q, G-B, R-X, Z-θrad, Z-θdeg
|
|
Monitor Parameters
|
Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
|
|
Accuracy
|
0.05% ±5 dgt
|
|
|
Frequency
|
50Hz - 200kHz (continuous frequency with resolution of 0.001Hz)
|
|
|
Display Range
|
L: 0.00001μH-999999H
C: 0.00001pF - 999999μF
R,Z: 0.00001 - 99.9999MΩ
D: 0.00001 - 9.99999
Q: 0.00001 - 99999.9
θ(deg): -179.999 °-179.999 °
θ(rad): -3.14159 – 3.14159
Δ%: -999999% - 999999%
|
|
Source Resistance
|
30Ω, 50Ω, 100Ω
|
|
Range
|
9 ranges, Automatic, Manual, Nominal
|
|
Max Reading
|
6 dgt, principle parameter: 999999;
sub parameter: 999999;monitor parameter: 999999
|
|
Signal Source
|
0.01V - 2.00V (10mV Step)
|
|
Speed
|
30 times/second, 10 times/second,
6 times/second, 3 times/second1 - 256 times average is available
|
|
Comparator
|
14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX,
2-bin principle parameter NG
Count function: Max - 999999
|
|
List Scanning
|
10 groups frequency and level scanning test
|
|
Adjustment
|
Open/Short frequency reset, 3 point frequency and load correction
|
|
Files
|
10 group files to save users setting,1 group to save system data real-time
|
|
Interface
|
RS232C, ExHandler Interface,with standard USB disc interface (article 10000 data)
|
|
Others
|
LCR automatic select, keypad lock,
SCPI instruction set, true-color TFT-LCD display
|
|
GENERAL FEATURES
|
|
Power Supply
|
Voltage: 90V AC - 250V AC, Frequency: 50Hz - 60Hz, Power: Max 20VA
|
|
Dimension & Weight
|
264mm(Width)x107mm(Height)x350 mm(Depth); 4kg
|
|
ORDERING INFORMATION
|
|
Accessories
|
ATL501: Test cable
ATL601: Test Fixture
ATL600: Short-circuit device
ATL108: 232 Communication cable
|
|
Optional Accessories
|
ATL608 SMD patch clamp
ATL508: SMD patch test clip
ATS2816: Data acquisition software
ATL508A: SMD patch test clip
|
Standard Package:
ATL501: Test cable
ATL601: Test Fixture
ATL600: Short-circuit device
ATL108: 232 Communication cable
Specification:
- Parameters: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,G-B,R-X,Z-theta rad,Z-theta deg
- Monitor Parameters: Z, D, Q, theta r, theta d, R, X, G, B, Y, Vac, Iac, delta , delta %
- Accuracy: 0.05% ±5
- Frequency: 50Hz-200kHz
- Display Range:
L 0.00001uH - 999999H; C 0.00001pF - 999999uF; R,Z 0.00001 ohm - 99.9999M ohm;
Q 0.00001 - 999999; theta (deg) -90.0000 degree - 90.0000 degree; theta (rad) -3.14159 - 3.14159; delta % -999.999% - 999.999%; D 0.00001 - 9.99999
- Source Resistance: 30 ohm 50 ohm 100 ohm
- Range: 9 ranges, Automatic, Manual, Nominal
- Display Max: 6 dgt, principle parameter: 999999; sub parameter: 999999; monitor parameter: 999999
- Signal Level: 0.01V - 2.00V (10mV Step)
- Speed: 30 t/s, 10 t/s, 6 t/s, 3 t/s 1 - 256 times average is available
- Comparator: 14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG Count function: Max - 999999
- List Test: 10 groups frequency and level scanning test
- Adjustment: Open/Short frequency reset, 3 point frequency and load correction
- Files: 10 group files to save users setting, 1 group to save system data real-time
- Interface: RS232C, ExHandler Interface, with standard USB disc interface (article 10000 data)
- Others:
LCR automatic selection, keypad lock, SCPI instruction set, true-color TFT-LCD display
Voltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Power: Max 20VA
264mm(Width)x107mm(Height)x350 mm(Depth); 4kg
ATL501: Test cable ATL607: Test fixture ATL600: Short-circuit slice ATL801: 232 Communication cable
