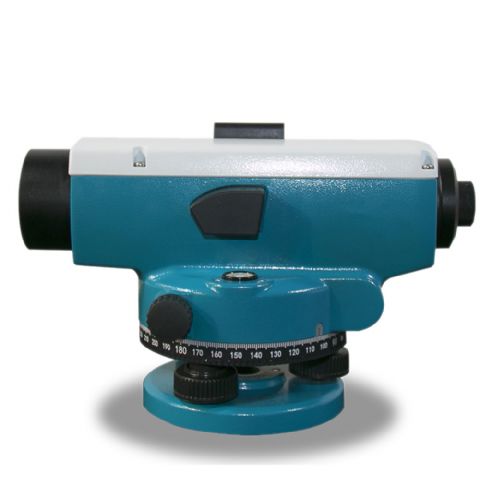

IP67 Auto Level With Compensator Surveying Level

Specification:

Telescope Magnification: 32X

Standard deviation for 1km double-run leveling: 1.5mm

Setting accuracy: ±0.3″

Compensator working range: ±15′

Telescope image: Erect

Clear objective aperture: 40mm

Angle of field of view: 1°20′

Shortest focusing distance: 0.5m

Stadia Multiplication constant/Addition constant: 100/0

Circular level sensitivity: 8′/2mm

Horizontal circle: 360° or 400gon

Dust/waterproof : IP67

Compensator type: V type hanging wire and magnetic damping

Size:228mm×125mm×148mm

Net weight: 1.77Kg

Thread tripod:M16 or 5/8”
