Mainly used for analog and digital television network construction and maintenance. With the Spectrum and Channel Scan function, you can easily diagnose and analyze the network fault to ensure the normal operation of the network. It is more suitable for   the measurement of digital-analog-mixed network.

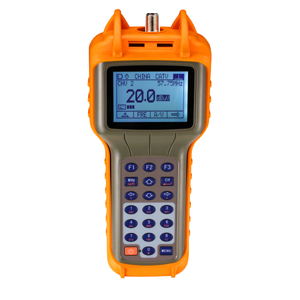

Model No	BTTI-2327		BTTI-2328
Digital DVB
Frequency scope	5~870MHz		5~870MHz
Modulation	DVB-C/ITU-T
Support	64QAM/128QAM	64QAM/128QAM/256QAM
Digital average power	30dBuV ~ 110dBuV
precision	+2dB
Symbol rate	1MS/S-7 MS/S
Modulate error rate(MER)	22dB ~ 39dB
Bit error rate(BER)	RS 1E-3~1E-9
Analog TV
Frequency scope	5~870MHz
level	20dBuV ~ 120dBuV
precision	+1.5dB
Channel scan	150
Spectrum / Frequency	Bandwidth2.5MHZ  can be se
Other Functions	Spect, Scan, Tilt, C/N, Voltage and so on
Power supply
battery	7.2V/1500mAH rechargeable battery
AC Supply:	AC 90V-220V 50Hz-60Hz
Working time	6h
Charging time	3h
