Description:

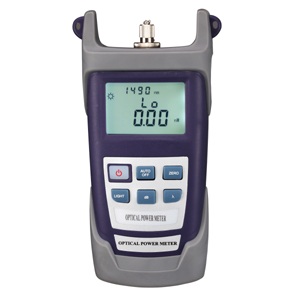

Handheld Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.
Compared with other usual power meters, the Meter has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data saving via USB port.
Combined with handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
Features
. Wave ID Auto wavelength identification & switching
. Frequency ID ---Auto frequency identification
. 2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
. Intelligent backlight
. 1000 records storage or download via USB cable
. USB communication port for saved testing records download
. Reference power level can be set up and stored
. User self-calibrating function
. Auto-off function
. Up to 240hrs battery life
Specifications
|
Model
|
OPME-1300A
|
OPME-1300C
|
|
Calibration Wavelength(nm)
|
800~1700
|
|
Detector type
|
InGaAs
|
|
Measurement Range(dBm)
|
-70+10
|
-50+26
|
|
Uncertainty (dB)
|
+0.2(5%)
|
|
linearity (dB)
|
0.01
|
|
Display resolution(dB)
|
0.03
|
|
Frequency ID Hz
|
270 330 1K 2K
|
|
Wave ID nm
|
850,980,1300,1310,1490,1550,1625
|
|
Date Storage Capacity
|
1000
|
|
Communication Port
|
USB
|
|
Connector
|
FC/SC/ST Interchangeable
|
|
Alkaline battery
|
3AAA 1.5V or Li battery (9V)
|
|
Power Adapter(V)
|
8.4
|
|
Battery Operating time (h)
|
240 without backlight
|
|
Operation Temperature(oC)
|
-10(oC) +60
|
|
Storage Temperature(oC)
|
-25(oC)+70
|
|
Dimension(mm)
|
172*82*33
|
|
Weight(g)
|
310
|
Standard Packages
|
MODEL
|
INCLUDES
|
|
OPME-1300
|
OPME-1300 Optical Power Meter, 3pcs 1.5V Batteries, Power Adapter, User Manual, USB cable, CD, Cotton Stick and Soft Carrying Case.
|
