7PCS Automotive Diagnosis Oscilloscope With 60MHz
Zoom Browse
Product Name: 7PCS Automotive Diagnosis Oscilloscope With 60MHz
Product Numbers: AUSO-3064-VII
Product Specifications: 4 Channels 60MHz
Product Unit: Cranking Exhaust Diagnosis
Product Remark: Charging Circuits Current
Product Class:Measuring and Testing Instruments > Auto Diagnostic > Automotive Oscilloscope
Product Details
【DateTime:2015-04-17 Browse:】【Font: Big Mid Small】【Print】【Close

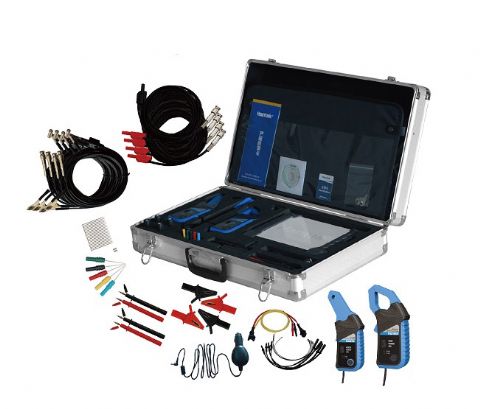

7PCS Automotive Diagnosis Oscilloscope
Part NO: AUSO-3064-VII

What is used for?
    •First Diagnosis(Cranking Exhaust Diagnosis)
    •Ignition Action(Current/Voltage)
    •The Sensor(Air Flow Meter,Camshaft,Crankshaftˇ)
    •Bus Diagnosis(CAN Bus Data View)
    •Performer(Petrol/Diesel)
    •Startup&Charge(Charging Circuits Current/Voltage)
Oscilloscope:
    •4 Channels and EXT trigger, 60MHz Bandwidth.
    •200MS/s real-time sampling rate, 10k--16M  memory depth per Channel.
    •Frequency Counter,FFT spectrum analysis.
    •8--36V Wide range of input voltage,suitable for vehicle power test.
    •USB 2.0 interface plug and play, LAN optional.
    •More than 20 kinds of automatic measurement andPASS/FAIL Check function, which is suitable for engineering application.
    •Excellent industrial design, similar interface with bench oscilloscope ,Easy to use.
    •Software support: Windows NT, Windows 2000, Windows XP,VISTA,Win7, Win8.
    •Supply DEMO code (VC,VB,LABVIEW) and technical support.


Model AUSO-3064-VII
Vertical System
Analog Channels 4
Bandwidth 60MHz(-3dB)
Rise Time 5.8ns
Input Impedance Resistance: 1MΩ  ; Capacitance: 25 pF
Input Sensitivity 10mV/div to 5V/div
Input Coupling AC/DC/GND
Vertical Resolution 8 bits
Memory Depth 10K-16M/CH
Maximum Input 400V (DC+AC Peak)
Horizontal System
Real-Time Sampling Rate 200MS/s
Time Base Range 5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision ±50ppm
Trigger System
Source CH1, CH2,CH3,CH4,EXT
Mode Edge,Pulse,Viedo,Alternative
Voltage Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process +,- , x,÷, FFT, Invert
Voltage Range  10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe;
1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe;
100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1
Current Range CC65(20A),CC65(60A),CC650,CC1100
FFT Rectangular,Hanning,Hamming,Blackman Window
Math Adition,subtraction,multiplication,division
Gennral Feature
 Interface USB  2.0(Lan Optional)
 Power Source 8--36V Wide range of input voltage
Volume 255 x 190 x 45 (mm)
Weight 1Kg
