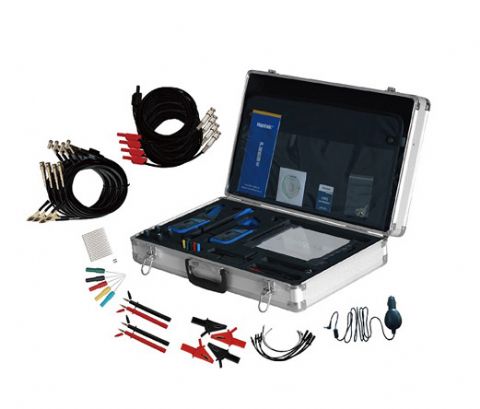

5PCS USB Automotive Diagnostic Oscilloscope 60MHz 4Ch 200MS/s
Zoom Browse
Product Name: 5PCS USB Automotive Diagnostic Oscilloscope 60MHz 4Ch 200MS/s
Product Numbers: AUSO-DOS3064-V
Product Specifications: 60MHz 4Ch 200MS
Product Unit: Current/Voltage
Product Remark: Charging Circuits Current/Voltage
Product Class:Measuring and Testing Instruments > Auto Diagnostic > Automotive Oscilloscope
Product Details
【DateTime:2015-04-18 Browse:】【Font: Big Mid Small】【Print】【Close
5PCS USB Automotive Diagnostic Oscilloscope 60MHz 4Ch 200MS/s
Part No: AUSO-DOS3064-V

Oscilloscope:
    ----4 Channels and EXT trigger, 60MHz Bandwidth.
    ----200MS/s real-time sampling rate, 10k--16M  memory depth per Channel.
    ----Frequency Counter,FFT spectrum analysis.
    -----8--36V Wide range of input voltage,suitable for vehicle power test.
    ----USB 2.0 interface plug and play, LAN optional.
    ----More than 20 kinds of automatic measurement andPASS/FAIL Check function, which is suitable for engineering application.
    ----Excellent industrial design, similar interface with bench oscilloscope ,Easy to use.
    ----Software support: Windows NT, Windows 2000, Windows XP,VISTA,Windows 7.
    ----Supply DEMO code (VC,VB,LABVIEW) and technical support
Veh-icle Diagn-osis :
    ----irst Diagnosis(Cranking Exhaust Diagnosis)
    ----Ignition Action(Current/Voltage)
    ----The Sensor(Air Flow Meter,Camshaft,Crankshaftˇ)
    ----Bus Diagnosis(CAN Bus Data View)
    ----Performer(Petrol/Diesel)
    ----Startup&Charge(Charging Circuits Current/Voltage)

Specification;
Model AUSO-DOS3064-V
Vertical System
Analog Channels 4
Bandwidth 60MHz(-3dB)
Rise Time 5.8ns
Input Impedance Resistance: 1MΩ  ; Capacitance: 25 pF
Input Sensitivity 10mV/div to 5V/div
Input Coupling AC/DC/GND
Vertical Resolution 8 bits
Memory Depth 10K-16M/CH
Maximum Input 400V (DC+AC Peak)
Horizontal System
Real-Time Sampling Rate 200MS/s
Time Base Range 5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision ±50ppm
Trigger System
Source CH1, CH2,CH3,CH4,EXT
Mode Edge,Pulse,Viedo,Alternative
Voltage Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process +,- , x,÷, FFT, Invert
Voltage Range  10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe;
1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe;
100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1
Current Range CC65(20A),CC65(60A),CC650,CC1100
FFT Rectangular,Hanning,Hamming,Blackman Window
Math Adition,subtraction,multiplication,division
Gennral Feature
 Interface USB  2.0(Lan Optional)
 Power Source 8--36V Wide range of input voltage
Volume 255 x 190 x 45 (mm)
Weight 1Kg
