CNC Lathe FMB Face Mill Holder Chuck
Zoom Browse

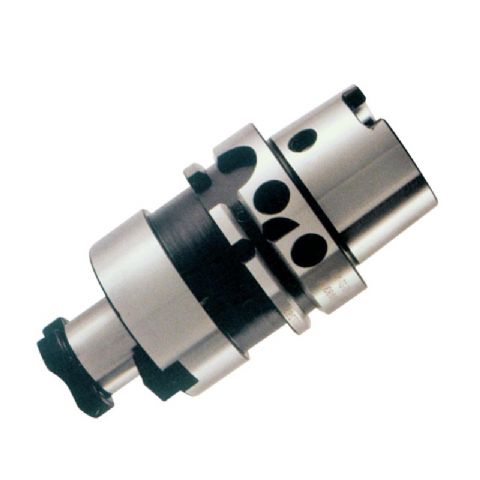

Product Name: CNC Lathe FMB Face Mill Holder Chuck
Product Numbers: HSK-FMB
Product Specifications: Runout:0.005mm
Product Unit: shell mill cutters
Product Remark: AD and AD/B can be made by request
Product Class:Machinery and Engineering Tools > Tool Holder > HSK Series Tool Holder Chuck
Product Details
【DateTime:2018-12-19 Browse:】【Font: Big Mid Small】【Print】【Close

CNC Lathe FMB Face Mill Holder Chuck



Features:

1.Runout:0.005mm

2.Cooling:Central Coolant

AD and AD/B can be made by request.

3.Balancing:G6.3/15000RPM

Balancing G2.5 can be made by request.

4.Usage:for holding tools such as shell mill cutters.


Model

d

A

L1

D

HSK50-FMB16-50

16

50

17

38

HSK50-FMB22-60

22

60

19

48

HSK50-FMB27-60

27

60

21

58

HSK50-FMB32-60

32

60

24

78











HSK63-FMB16-50

16

50

17

38

HSK63-FMB22-50

22

50

19

48

HSK63-FMB27-60

27

60

21

58

HSK63-FMB32-60

32

60

24

78

HSK63-FMB40-60

40

60

27

88

HSK63-FMB16-100

16

100

17

38

HSK63-FMB22-100

22

100

19

48

HSK63-FMB27-100

27

100

21

58

HSK63-FMB32-100

32

100

24

78

HSK63-FMB40-100

40

100

27

88











HSK80-FMB22-50

22

50

19

48

HSK80-FMB27-50

27

50

21

58

HSK80-FMB32-60

32

60

24

78

HSK80-FMB40-60

40

60

27

88











HSK1OO-FMB22-50

22

50

19

48

HSK1OO-FMB27-50

27

50

21

58

HSK1OO-FMB32-50

32

60

24

78

HSK1OO-FMB40-60

40

60

27

88

HSK1OO-FMB60-70

60

70

40

130

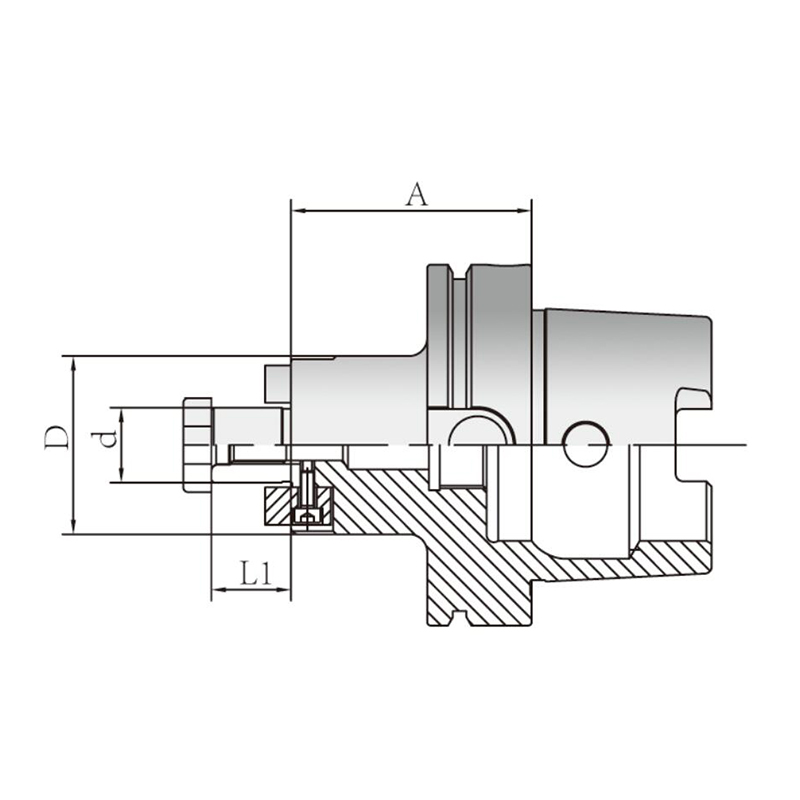

FMB Face Mill Holder Drawing
