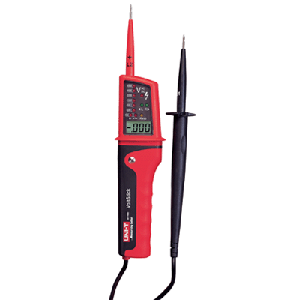

Testadores De Tensão e Continuidade de Corrente, China
SPECIFICATIONS
| Technical Functions/ Features |
UT15C |
| Voltage LED Steps (AC/D) |
12V: between 0 to 12V LED will illuminate
24V: between 19V ± 2V LED will illuminate
50V: between 48V ± 6V LED will illuminate
120V: between 110V ± 20V LED will illuminate
230V: between 200V ± 20V LED will illuminate
400V: between 340V ± 30V LED will illuminate
690V: between 520V ± 30V LED will illuminate |
| Continuity Test |
Range 0 to 100kΩ. The continuity LED will illuminate
and buzzer will sound. |
| Phase Rotation Test |
50Hz to 60Hz |
| Range Selection |
Automatic |
| Polarity Detection |
Positive & Negative |
| Low Battery Display |
Short circuit two leads, LED and beeper do not on that means
the battery is low |
| Torch |
YES |
Single Lead (L2) Voltage
Detection |
It is intended only as a quick check. 100V to 690V;
50Hz to 400Hz |
| Short Circuit Detection |
YES |
| LCD display (AC/DC) |
24V to 690V: ±(3%+5) |
GENERAL CHARACTERISTICS
| Power |
1.5V Battery (AAA) x 2 |
| LCD Size |
23 x 12mm |
| Product Color |
Red and Grey |
| Product Net Weight |
210g |
| Product Size |
275 x 51 x 30mm |
| Standard Accessories |
Batteries, English Manual |
Standard Individual Packing
|
Blister |
| Standard Quantity Per Carton |
30pcs |
| Standard Carton Measurement |
440 x 295 x 455mm (0.079CBM Per Standard Carton) |
| Standard Carton Gross Weight |
17kg |
