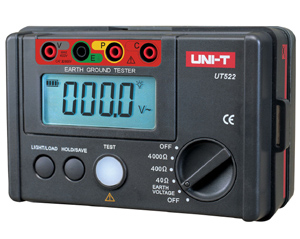

China Testadores De Aterramento UT522
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| Earth Resistance Testing |
0 ~ 40W
0 ~ 400W
0 ~ 4000W
|
±2%rdg±0.2W
±2%rdg±3dgt
±2%rdg±3dgt |
| Earth Voltage Testing |
0~400Vac(50/60Hz) |
±1%rdg±6dgt |
| Special Functions |
|
|
| Data Hold |
|
YES |
| Backlight Display |
|
YES |
| Data Logging |
20 |
YES |
| Battery Check |
|
YES |
| Sleep Mode |
Around 10 Minutes |
YES |
| Full Icon Display |
|
YES |
| Over-range Display |
Display "OL" |
YES |
| Contact Badness Display |
C Port or E Port dont contact Display"- - - - W" |
YES |
| Simple 2-Wires Testing |
|
YES |
| Precision 3-Wires Testing |
|
YES |
| Double Insulation Protection |
|
YES |
GENERAL CHARACTERISTICS
| Power |
1.5V Alkaline Battery(AA) x 6 |
| LCD Size |
70.6 mm x 34 mm |
| Product Color |
Grey |
| Product Net Weight |
560g |
| Product Size |
160 x 100 x 70.5 mm |
| Standard Accessories |
Battery, Three Test Lead (Green + Yellow + Red), English Manual, Simple Test Lead, Carrying Bag, Test Probe 2 pcs |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
4 pcs |
| Standard Carton Measurement |
615 x 530 x 190 mm (0.062 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
15kg |
