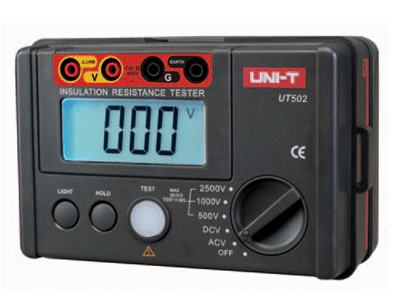

China Testador de Isolamento de Resistência UT502
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| Output Voltage |
500V/1000V/2500V
|
±10% |
| Niminal Current |
250V/500V 1mA
500V/1000V 1mA
1000V/2500V 1mA |
±10%
±10%
±10% |
| Short Circuit Current |
<2mA |
YES |
| Insulation Resistance Measurement |
500V: 3MW ~ 2000MW
5MW ~ 4000MW
2500V: 30MW ~ 20GW |
±3%+1
±3%+1
±3%+1 |
| Voltage Measurement |
1000V DC
750V AC |
±(2%+3)
±(2%+3) |
| Special Functions |
|
|
| Auto Ranging |
|
YES |
| Low Battery Display |
|
YES |
| Alarm Light Display |
|
YES |
| Display Backlight |
|
YES |
| Alarm Buzzer |
|
YES |
GENERAL CHARACTERISTICS
| Power |
1.5V Alkaline Battery x 6 |
| LCD Size |
70.6 mm x 34 mm |
| Product Color |
Red & Grey |
| Product Net Weight |
500g |
| Product Size |
150 x 100 x 71 mm |
| Standard Accessories |
Battery, Probe, Alligator Clip, Test Lead,English Manual, Carrying Bag, Gallus |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
20 pcs |
| Standard Carton Measurement |
500 x 380 x 330 mm (0.063 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
10.5kg |
