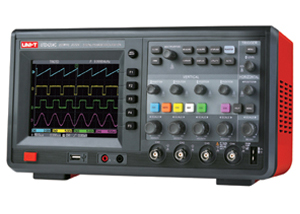

Osciloscópio Digital UTD4204C
SPECIFICATIONS
|
| Feature |
UTD4204C |
| Bandwidth |
200 MHz |
| Rise Time |
≤1.8ns |
| Analog Channels |
4 |
| Real-time Sampling Rate |
2GS/s |
| Equivalent Sampling Range |
50GS/s |
| Vertical Sensitivity |
2mV ~ 5V/div |
| Record Length (Max) |
1024k |
| Scan Time Base |
5ns ~ 50s/div |
| Trigger Type |
Edge, Pulse, Video, Slope and Alternate |
| Automatic Waveform Measurements |
24+2(advance measurement) |
| Frequency Counter |
6 digits frequency counter |
| Ports |
Standard: USB Device, USB Host; PASS/FAIL. |
| LA interface, Multimeter interface, LAN and GPIB |
| Mathematics |
Add, Subtract, Multiply, Divide, Reverse and FFT |
| Applications |
College Education, R&D, |
| Eletronic product assemble line, Industrial Control etc. |
| Other Features |
Digital Multimeter and Logic Analyzer,Trigger Frequency counter |
