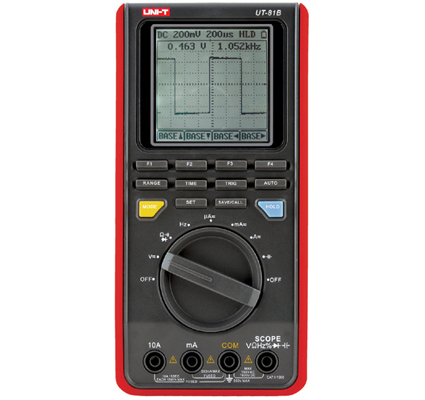

ScopeMeter,Osciloscópios Portáteis UT81B China
Scope Digital Multimeter UT81A/B (hereafter referred to as “the Meter”) is a 3999 counts and 3 3/4 digits adopting digital control techique with both waveformand multimeter all in one.
Scope mode is a complete intelligent measurementsystem including signal input, sampling, data process, auto search and waveform save and recall
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| DC Voltage |
400mV/4V/40V/400V/1000V |
±(0.8%+8) |
| AC Voltage |
4V/40V/400V/750V |
±(1%+15) |
| DC Current |
400mA /4000mA/40mA/400mA/4A/10A |
±(1%+8) |
| AC Current |
400mA/4000mA/40mA/400mA/4A/10A |
±(1.5%+8) |
| Resistance |
400W/ 4kW/40kW/400kW/4MW/ 40MW |
±(1%+5) |
| Capacitance |
40nF /400nF/4mF/40mF/100mF |
±(3%+8) |
| Frequency |
10Hz~10MHz |
±(0.1%+3) |
| Vertical Accuracy |
|
±(5%+1) |
| Input Sensitivity |
20mV/div-500V/div (1-2-5) |
A |
| Horizontal Accuracy |
|
±(0.01%+1) |
| Timebase Range |
100ns/div-5s/div (1-2-5) |
A |
| Bandwidth |
|
8MHz |
| Display Resolution |
160X160 |
A |
| Real-Time Sample Rate |
|
40MSa/s |
| Duty Cycle |
0.1%~99.9% |
A |
| Special Functions |
|
| Diode |
|
A |
| Continuity Buzzer |
|
A |
| Display |
160x160 Monochrome |
A |
| Trigger Types |
Free Run / Normal / Single Shot |
A |
| Memory |
10 screens and setups |
A |
| Contrast and Bright Setup |
|
A |
|
Input Impedance For DCVoltage Measurement
|
Around 10MW |
A |
| Sleep Mode |
|
A |
| Low Battery Display |
|
A |
| Display Backlight |
|
A |
| USB |
|
A |
| Max.Display |
3999 |
A |
GENERAL CHARACTERISTICS
| Power |
1.5V Battery (R6) x 6 |
| LCD Size |
60 x 60mm |
| Product Color |
Red and Grey |
| Product Net Weight |
498g |
| Product Size |
200 x100 x 48mm |
| Standard Accessories |
Test Lead , Battery, English Manual ,Alligator Clip、
USB Interface Cable, Software, Power Adapter
|
| Optional Accessories* |
Scope Probe, BNC Probe |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
20pcs |
| Standard Carton Measurement |
490 x 385 x 510mm (0.096 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
24kg |
