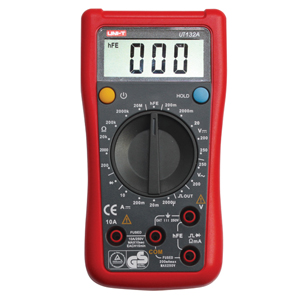

Multimetro Digital UT132A China
Basic Functions
|
Range
|
Best Accuracy
|
UT132A
|
UT132B
|
DC Voltage
|
200mV/ 2000mV/ 20V/ 200V/ 250V
|
±(0.5%+2)
|
±(0.5%+2)
|
AC Voltage
|
200V/ 250V
|
±(1.2%+3)
|
±(1.2%+3)
|
DC Current
|
2000μA/ 20mA/ 200mA/ 10A
|
± (1%+2)
|
|
2000μA/ 200mA/ 10A
|
|
± (1%+2)
|
Resistance
|
200Ω/ 2000Ω/ 20kΩ/ 200kΩ/ 2000kΩ/ 20MΩ
|
±(0.8%+5)
|
±(0.8%+5)
|
Square Wave Output
|
PictOld
|
√
|
|
Battery
|
1.5V/ 9V
|
|
±(1.0%+2)
|
Special Functions
|
Manual Ranging
|
√
|
√
|
Diode
|
√
|
√
|
Transistor
|
√
|
√
|
Continuity Buzzer
|
|
√
|
Data Hold
|
√
|
√
|
Low Battery Display
|
√
|
√
|
Input Impedance for DC Voltage Measurement
|
Around 10MΩ
|
Around 10MΩ
|
Max. Display
|
1999
|
1999
|
|
|
|
|
GENERAL CHARACTERISTICS
|
|
|
|
Power
|
9V Battery(6F22)
|
|
|
LCD Size
|
49 x18 mm
|
|
|
Product Colour
|
Red and Grey
|
|
|
Product Net Weight
|
200g
|
|
|
Product Size
|
72mm×137mm×35mm
|
|
|
Standard Accessories
|
Battery/ Test Lead/ English Manual/ Multi-Purpose Socket
|
|
|
Standard Individual Packing
|
Gift Box
|
|
|
Standard Quantity Per Carton
|
40 pcs
|
|
|
Standard Carton Measurement
|
540x365x290 mm (0.057CBM Per Standard Carton)
|
|
|
Standard Carton Gross Weight
|
13.8kg
|
|
|
