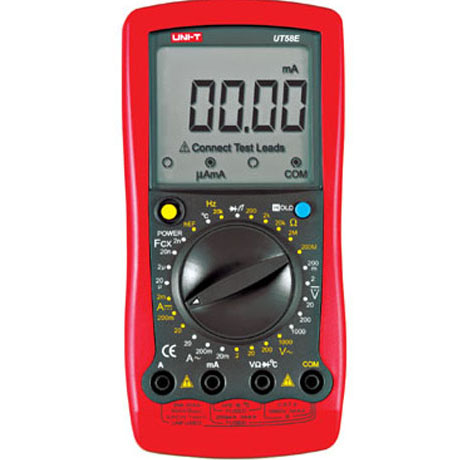

China Multímetro Digital UT58E
Funciones del multímetro digital UNI-T UT58E
- Funciones:
- corriente y voltaje AC/DC
- resistencia
- frecuencia
- capacitancia
- chequeo de continuidad (con zumbador)
- chequeo de diodos
- chequeo de transistores
- Retención de datos
- Indicador de batería baja
- Ajuste manual
- Modo de espera
Especificaciones comparativas de multímetros digitales UNI-T UT58D y UT58E
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| DC voltaje, V |
200mV/2V/20V/200V/1000V |
±(0.05%+3) |
| AC voltaje, V |
2V/20V/200V/1000V |
±(0.5%+10) |
| DC corriente, A |
2mA/200mA/20A |
±(0.5%+5) |
| AC corriente, A |
20mA/200mA/20A |
±(0.8%+10) |
| Resistencia, Ω |
200W/2kW/20kW/2MW/200MW |
±(0.5%+10) |
| Capacitancia, F |
2nF/20nF/2mF/20mF |
±(3%+40) |
| Temperatura, ºC |
-40°C ~ 1000°C |
±(1%+30) |
| Frecuencia, Hz |
20kHz |
±(1.5%+5) |
| Special Functions |
|
|
| Diode |
|
YES |
| Continuity Buzzer |
|
YES |
| Transistor |
|
YES |
| Data Hold |
|
YES |
| Full Icon Display |
|
YES |
| Sleep Mode |
|
YES |
| Low Battery Display |
|
YES |
Input Impedance for DC
Voltage Measurement |
Around 10MW |
YES |
| Pantalla |
19999 |
YES |
GENERAL CHARACTERISTICS
| Power |
9V Battery (6F22) |
| LCD Size |
60 x 54mm |
| Product Colour |
Grey Holster - Red |
| Peso, g |
350g (including holster) |
| Product Size |
179 x 88 x 39mm |
| Standard Accessories |
Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, Multi-Purpose Socket, Holster |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
40pcs |
| Standard Carton Measurement |
598 x 418 x 340mm
(0.085 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
27kg |
