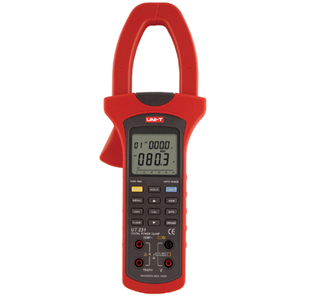

Alicate Amperométrico UT231
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| AC Voltage |
15V/100V/300V/600V |
±(1.2%+5) |
| AC Current |
40A/100A/400A/1000A |
±(2%+5) |
| Active Power |
0.01kW-600kW |
±(3%+5) |
| Apparent Power |
0.01kVA-600kVA |
±(3%+5) |
| Reactive Power |
0.01kVAr-600kVAr |
±(4%+5) |
| Power Factor |
0.3~1(Capacitive or Inductive ) |
±(0.02+2) |
| Phase Angle |
0°C~360°C |
±1° |
| Frequency |
20Hz-500Hz |
YES |
| Active Energy |
1~9999 kWh |
±(3%+2) |
| Temperature |
-50°C~1000°C
-50°F~1832°F
|
±(1%+3)
±(1%+5) |
| Special Functions |
|
|
| Auto Ranging |
|
YES |
| Single-phase 2-wire |
|
YES |
| True RMS |
AC Voltage or Current |
YES |
| Calibration Feature |
|
YES |
| Data Logging |
99 |
YES |
| Data Recall |
|
YES |
| Max/Min Mode |
|
YES |
| Data Hold |
|
YES |
| USB |
|
YES |
| Display Backlight |
|
YES |
| Full Icon Display |
|
YES |
| Sleep Mode |
|
YES |
| Low Battery Display |
|
YES |
|
Input Impedance for AC Voltage Measurement
|
≥10MW |
YES |
| Max. Display |
9999 |
YES |
| Analogue Bar Graph |
|
YES |
GENERAL CHARACTERISTICS
| Power |
1.5V Battery (LR6) x 4 |
| LCD Size |
46 x 42mm |
| Product Color |
Red and Grey |
| Product Net Weight |
601g |
| Product Size |
303 x 112 x 39mm |
| Standard Accessories |
Test Lead, Battery, English Manual, Point Contact Temperature Probe, Alligator Clips, USB Interface Cable, Software, Tool Box |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
5pcs |
| Standard Carton Measurement |
480 x 372 x 315 mm (0.056 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
12kg |
