Imaging Performance

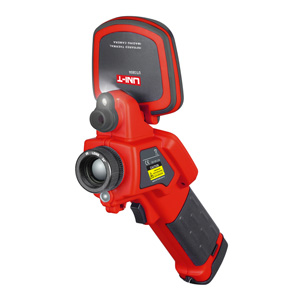

UTI380A

Thermal field of view

24° x 18°, 12°x9°, 48°x36°

Spatial resolution

1.3 mrad for 24°x18°

Minimum Focus Distance

0.5m

Thermal Sensitivity (NETD)

0.05 @ 30° C

Detector Data Acquisition

60Hz

Focus

Manual

Detector type

UFPA,384X288

Spectral band

8~14 um

On camera operating modules

Full thermal, full visual light or PIP

Visible light camera

640 x 480pixles/full color

Temperature Measurement

Range 1

-20° C to 250°C

Range 2

200° C to 1000 °C

Range 3

800° C to 1500 °C

Accuracy

±2 °C or 2%

Measurement modes

analysis up to 10 spots, auto tracking, area analysis, isotherm analysis, line profile

Temperature alarm

max/min, isotherm alarm

Correction

emissivity (0.1 to 1.0,0.01 increments), ambient temp., distance, relative humidity

Digital Display

3.5" LCD integrated with remote control

LCD backlight

CCFL

Video output

NTSC 60Hz / PAL 50 Hz composite video

View Finder

640X 480 full color

palettes

6

Image and Data Storage

Storage Medium

Mini SD card/2GB

File format

14 bit measurement data included, SAT format

Voice annotation

40S with headset, saved with thermal image

Software

Interfaces and Software

SatIrReport Standard, SatIrReport Professional, SatIrReport USB

USB 2.0

Transfer thermal video with 14 bit measurement date to PC

Illuminator

Yes

Laser

635 nm red, Class II, laser dot visible on screen when blending thermal and visible images

Power, Battery Life

battery type

Rechargeable Lithium Battery

battery operating time

2.5 Hours continues

battery charging

1 bay intelligent charger powered via AC outlet

Power saving

Automatic shut down and sleep mode

Environmental and Mechanical Design

Operating temperature

negative 20 to 50 C

storage temperature

negative 40 to 70 C

relative humidity

10% to 95%, non-condensing

water and dust resistant

IP54

Shock

Operational: 25G

Vibration

Operational: 2G

weight (battery included)

700g

size

215mm x 80mm x 219mm

Tripod mounting

1/4"_20
