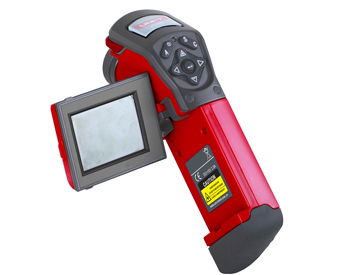

| Produtos Nome: China Câmeras Termográficas UTI160A Fabricante |
| Produtos Números: UTI160A |
| Produtos Especificaciones: 800 °C to 1500 °C |
| Produtos Unidade: Câmeras Termográficas |
| Produtos Clase:Instrumentos de Medição > Instrumentação Industrial > Cámaras Termográficas |
|
 Produtos Detalles Câmeras Termográficas
|
Thermal field of view
|
20 °x 15°，6.4°x4.8°，12°x8°
|
|
Spatial resolution
|
2.20 mRad
|
|
Minimum Focus Distance
|
0.1m
|
|
Thermal Sensitivity (NETD)
|
0.1 @ 30 °C
|
|
Detector Data Acquisition
|
60Hz
|
|
Focus
|
manual
|
|
Detector type
|
UFPA,160X120
|
|
Spectral band
|
8~14 um
|
|
Temperature Measurement
|
|
|
Range 1
|
-20°C to 250°C
|
|
Range 2
|
200 °C to 1000 °C
|
|
Range 3
|
800 °C to 1500 °C
|
|
Accuracy
|
±2 °C or 2%
|
|
Temperature alarm
|
max/min
|
|
Correction
|
emissivity (0.1 to 1.0,0.01 increments), ambient temp., distance, relative humidity
|
|
Image Presentation
|
|
|
Digital Display
|
2.5" LCD
|
|
LCD backlight
|
CCFL
|
|
Video output
|
NTSC 60Hz / PAL 50 Hz composite video
|
|
palettes
|
6
|
|
|
|
|
Image and Data Storage
|
|
|
Storage Medium
|
Min IR SD card/2GB
|
|
File format
|
14 bit measurement data included, SAT format
|
|
|
|
|
Interfaces and Software
|
Min Report
|
|
battery type
|
Rechargeable Lithium Battery
|
|
battery operating time
|
2.5 Hours continues
|
|
battery charging
|
1 bay intelligent charger powered via AC outlet
|
|
Power saving
|
Automatic shut down and sleep mode
|
|
Environmental and mechanical design
|
|
|
Operating temperature
|
negative 15 to 50 C
|
|
storage temperature
|
negative 40 to 70 C
|
|
relative humidity
|
10% to 95%, non-condensing
|
|
water and dust resistant
|
IP54
|
|
Shock
|
Operational: 25G
|
|
Vibration
|
Operational: 2G
|
|
weight (battery included)
|
500g
|
|
size
|
172mm x80mm x 162mm
|
|
Tripod mounting
|
1/4"_20
|
|
|
