Model

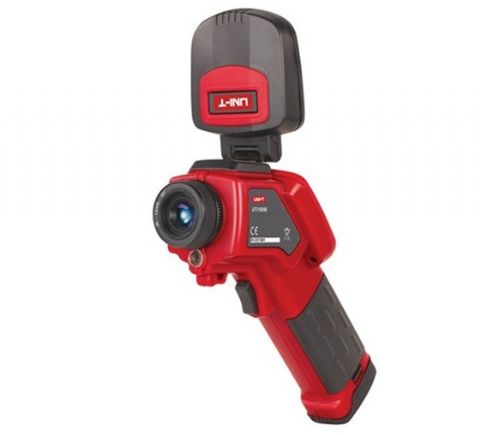

UTI160B

Imaging performance

Field of view / minimum imaging distance

20°X15°/0.1m

Spatial resolution

2.2mrad

Thermal sensitivity

≤0.08°@30°℃

Detector Type

Uncooled

Resolution

160X120

Working band

8~14um

Focus  Mode

Manual

Image display

Image frame rate

NTSC (60HZ) orPAL (50HZ) full-motion output

LCD

3.5 TFT screen

Palette

A variety of pseudo-color standard display (such as iron oxide red, anti-red iron oxide, black hot, incandescent, color, anti-plume red)

Temperature function

Temperature range

-20 to +300 °℃

Temperature measurement accuracy

± 2 °℃, ± 2% (of reading in ± 30 °℃)

Temperature measurement mode

Point (a movable point) or automatically set the high / low temperature region the real-time tracking feature.

Parameter correction

Emissivity correction: 0.1 to 1.0 adjustable emissivity (0.01 steps) Fixed: ambient temperature, distance,

High / low temperature capture / alarm functions

√

Image storage

PC Card Capacity: Storage capacity: 2GB mobile minisd card (can store up to 16,000 standard infrared thermal image) file formats: the UIR

Software analysis capabilities

Detailed image processing and analysis capabilities: You can quickly generate reports automatically, can be converted to WORD document, Chinese / English interface, you can query historical data

Weight / Color

Weight: <0.60Kg / Body Color: Red + Gray

Battery system

The battery lasts about time: ≥ 2.5 hours

Battery charging time: ≤ 1.5 hours

Charger power supply: voltage 190V ~ 250V Frequency 50Hz

Environmental requirements

Operating temperature: -15 °℃ ~ +50 °℃

Relative humidity: ≤ 95%

Storage temperature: -40 ° C to +70 ° C

Degree of protection

Comply with the IP54 industrial standard

Earthquake resistance

Earthquake resistance: 2.5g

Impact

Shock: 25g

Immunity to electromagnetic interference

IEC60960: 1991 + A1: 1992, A2: 1993, A3: 1995, A4: 1996
