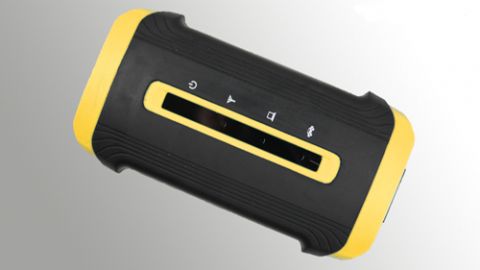

designed according to industry standard of RP1210A/B, it is PC-to-vehicle interface compatible with multiple software applications, it is available to diagnose most of heavy trucks, Buses, Grabs, Cranes and Engineering Machines for minimizing your investment in multiple brand-specific diagnostic interfaces.
Features：
l Industry standard RP1210 A/B compliance
l Flexible configuration supports USB wired and 802.11b/g WIFI wireless connectivity
l Adapters and cables self-determination for molding, durable and facility usage
l Support 12V and 24V vehicles communication, Available to diagnose heavy and Light trucks
l Protocol coverage for automotive to heavy duty vehicles:
ü CAN - J1939/CAN125/CAN250/CAN500
ü 2nd CAN - J1939/CAN125/CAN250/CAN500
ü J1587/J1708
ü J1850
ü ISO9141
ü ISO14230
ü ALDL
l CE and FCC compliance for hardware
l Firmware Updatable ，Keep improving
Hardware Specification：
|
Item
|
Instruction
|
|
Processor
|
Special Dual Cell Processor for automotive
|
|
Flash
|
512KB
|
|
Wired socket
|
USB2.0/USB1.1 Compatible
|
|
Diagnostic Socket
|
24PIN Adapter(Self-determination design)
|
|
Wireless Socket
|
802.11b/g Wireless WIFI
|
|
Indicator Light
|
4 LED indicator lights，Indicate Power and operation state
|
|
Power
|
DC 9V-28V Vehicle’s power input
|
|
Consumption
|
3W
|
|
Size
|
LxWxH=156x86x35(mm)
|
|
Working Temperature
|
-20～+70 °C
|
|
Storage Temperature
|
-40～+85 °C
|
|
Item
|
Instruction
|
|
Processor
|
Special Dual Cell Processor for automotive
|
|
Flash
|
512KB
|
|
Wired socket
|
USB2.0/USB1.1 Compatible
|
|
Diagnostic Socket
|
24PIN Adapter(Self-determination design)
|
|
Wireless Socket
|
802.11b/g Wireless WIFI
|
|
Indicator Light
|
4 LED indicator lights，Indicate Power and operation state
|
|
Power
|
DC 9V-28V Vehicle’s power input
|
|
Consumption
|
3W
|
|
Size
|
LxWxH=156x86x35(mm)
|
|
Working Temperature
|
-20～+70 °C
|
|
Storage Temperature
|
-40～+85 °C
|
Software Specification：
l VCX HD provide driver program compliance with industry standard of RP1210A/B
l VCX HD is a standard reprogramming tool of Pass through, ECU reprogramming online can be realized.
