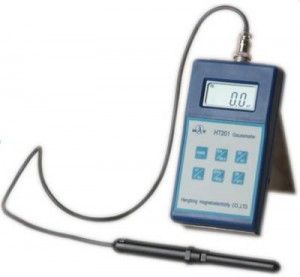

GSME-2000 Series Handheld Digital Gausímetro / Digital Teslámetro for measuring the DC magnetic field, AC magnetic field and other magnetic field of magnetic induction. The instrument can carry a wide range, easy operation, clear LCD display. 9V battery as a power source, can be used continuously for 20 hours.
Applications:
China Handheld digital Gauss meter, magnetic surface magnetic field, DC, speakers, magnetic separator, magnetic separator magnetic field of work. And after machining can be applied to detect residual magnetic materials, testing pole distribution, the product remaining after demagnetization field, and control the electro-magnetic, detect motor magnetic, electromagnetic fields of magnetic flux leakage testing.
Specifications:
Range : 0~200mT~2000mT
Calibrated with Accuracy : +/- 2%
Resolution: DC*1: 0.00~ 200.00mT 0.01mT
DC*10: 0.0~ 2000.00mT 0.1mT
AC*1 : 0.00~ 200.00mT 0.01mT
AC*10: 0.0~ 2000.00mT 0.1mT
Measured magnetic field: DC magnetic field (Static) / AC magnetic fiel(Dynamic)
Frequency range: 10Hz~200HZ
Function: DC/AC measurement button
Display the Piroity of Pole, on LCD "N" or "S"
Hold Button for data hold.
Measure 0-2000mT, equivalent 10 Gauss to 20,000Gauss
Unit Also display mT and Gs unit by select the key button
Ambient temperature: 5~40
Relative humidity: 20%~80%
Power supply: 1*9 volt battery
Dimension: 160mm×88mm×36mm
Weight: 300g
Display: 4 1/2 LCD
Units: mT / GS
Notes:1mT=10GS
