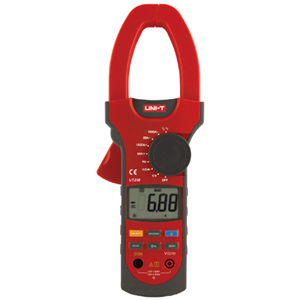

Pinzas Amperimétricas UT208 True RMS
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| DC Voltage |
6.6V/66V/600V |
±(0.8%+1) |
| AC Voltage |
6.6V/66V/600V |
±(1.2%+5) |
| DC Current |
66A/1000A |
±(1.5%+8) |
| AC Current |
66A/1000A |
±(2%+8) |
| Resistance |
660W/6.6kW/66kW/660kW/
6.6MW/66MW |
±(1%+2) |
| Temperature |
-40°C~1000°C
-40°F~1832°F
|
±(1%+3)
±(1%+4) |
| Frequency |
660Hz/6.6kHz/66kHz/660kHz/
6.6MHz/66MHz
|
±(0.1%+3) |
| Duty Cycle |
0.1% ~ 99.9% |
YES |
| Special Functions |
|
|
| Auto Ranging |
|
YES |
| Diode |
|
YES |
| Continuity Buzzer |
|
YES |
| True RMS |
AC Voltage |
YES |
| Surge Current |
AC Current |
YES |
| Max/Min Mode |
|
YES |
| Data Hold |
|
YES |
| Sleep Mode |
|
YES |
| Display Backlight |
|
YES |
| Full Icon Display |
|
YES |
| Low Battery Display |
|
YES |
| Input Impedance for AC Voltage Measurement |
Around 10MW |
YES |
| Max. Display |
6666 |
YES |
GENERAL CHARACTERISTICS
| Power |
9V Alkaline Battery (1604A or 6LF22) |
| LCD Size |
47 x 30mm |
| Product Color |
Red and Grey |
| Product Net Weight |
533g |
| Product Size |
286 x 105 x 45mm |
| Standard Accessories |
Test Lead, Alkaline Battery, English Manual, Point Contact Temperature Probe, Tool Box |
| Standard Individual Packingt |
Gift Box |
| Standard Carton Gross Weight |
5pcs |
| Standard Carton Gross Weight |
480 x 372 x 315mm (0.056 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
11kg |
