Wifi Analizadores Trifásicos de Calidad Eléctrica

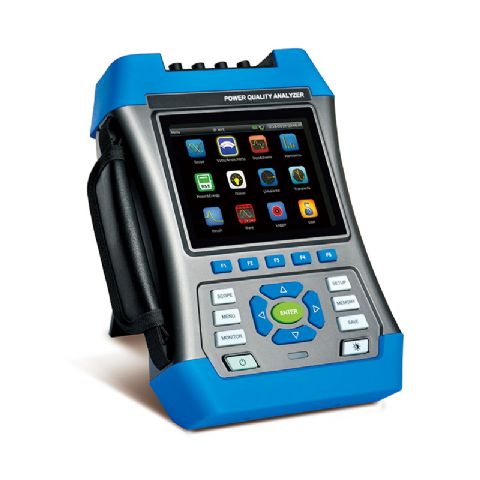

Analizadores Trifásicos de Calidad Eléctrica es un dispositi vo portátil profesional que mide y analiza la calidad del sistema de energía, proporciona análisis de armónicos y análisis de datos de calidad de energía, y también proporciona una memoria significativa para el almacenamiento de datos.
Este producto incluye un cable de alimentación estándar, cables de prueba de voltaje (5 piezas), pinzas de cocodrilo (5 piezas), bolsa de transporte suave y CD con software + guía del usuario.
caracteristicas
● LCD TFT de 5,6 pulgadas con resolución 640 * 480
● Cumplimiento estándar: IEC61000-4-30 Clase A
● Visualización de forma de onda en tiempo real (4 voltajes / 4 corrientes)
● Medición RMS de medio ciclo (voltaje y corriente)
● La medición de armónicos puede ser hasta 100 veces
● Vector, tendencia, gráfico de barras y visualización de tabla de eventos
● Desbalance trifásico (voltaje y corriente)
● Tarjeta de memoria incorporada de 32G
● La comunicación WIFI es compatible
|
Measurement
|
Measurement Range
|
Resolution
|
Accuracy
|
|
Voltage / Current / Frequency
|
|
Vrms(AC+DC)
|
1~1000Vrms
|
0.01Vrms
|
±0.1% of nominal voltage
|
|
Vpk
|
1~1400Vpk
|
0.01Vpk
|
±0.5% of nominal voltage
|
|
V(Crest Factor)
|
1.0~>2.8
|
0.01
|
±5%
|
|
Arms(AC)
|
10mV/A
|
0~150A
|
0.01A
|
±0.1% ±0.1A
|
|
1mV/A
|
1~2000A
|
0.01A
|
±0.1% ±0.1A
|
|
65mV/1000A
|
10~6000A
|
0.01A
|
±1% ±2A
|
|
A(Crest Factor)
|
1~10
|
0.01
|
±5%
|
|
Frequency
|
42.5~57.5(50Hz nominal)
|
0.01Hz
|
±0.01Hz
|
|
51~69(60Hz nominal)
|
0.01Hz
|
±0.01Hz
|
|
320~480(400Hz nominal)
|
0.01Hz
|
±0.01Hz
|
|
Dips&Swells
|
|
Vrms1/2
|
0~200% of nominal voltage
|
0.01Vrms
|
±0.2%
|
|
Arms1/2
|
depends on current clamps
|
0.01A
|
±1%
|
|
Harmonic(IEC61000-4-7)
|
|
Harmonic Number
|
1~100(50/60Hz) 1~12(400Hz)
|
|
Harmonic Voltage % of
|
0.0~100.0%
|
0.01%
|
±0.1% ± nx0.1%
|
|
Harmonic Current % of
|
0.0~100.0%
|
0.01%
|
±0.1% ± nx0.1%
|
|
THD
|
0.0~100.0%
|
0.01%
|
±2.5%
|
|
Phase
|
-180°~180°
|
0.1°
|
± nx0.1°
|
|
Power and Energy
|
|
P,S,Q1
|
Max.6000MW
|
0.1kW
|
±1% ± 10 digits
|
|
PF & CosΦ
|
0~1
|
0.01
|
±0.1%
|
|
kWh,kVAh,kvarh
|
depends on nominal voltage and current clamps
|
±1% ± 10 digits
|
|
Flicker(IEC61000-4-15)
|
|
Pst(10 min) / Plt(2 hrs)
|
0.00~20.00
|
0.01
|
±5%
|
|
Unbalance
|
|
Voltage
|
0.0~20.0%
|
0.1%
|
±0.1%
|
|
Current
|
0.0~20.0%
|
0.1%
|
±1%
|
|
Voltage Phase
|
-360°~0°
|
0.1°
|
±0.1°
|
|
Current Phase
|
-360°~0°
|
0.1°
|
±0.5°
|
|
Voltage Transient
|
|
Vpk
|
±6000Vpk
|
1V
|
±15%
|
|
Vrms
|
10~1000Vrms
|
1V
|
±2.5%
|
|
Min.Test Time
|
6.5us
|
|
|
|
Inrush Current
|
|
Arms
|
depends on current clamps
|
0.01
|
±1% ± 5 digits
|
|
Inrush Duration
|
1~32min selectable
|
10ms
|
±20ms
|
|
Logger
|
|
Recording
|
user defined parameters for 4 phases at the same time
|
|
Memory
|
Data stored in TF card, 32GB
|
|
Duration Time
|
2 hrs to 1 year,depends on the recording items and time interval
|
|
Interval
|
1s to 60 minutes
|
|
General Characteristic
|
|
Display
|
5.6 TFT LCD with resolution640*480
|
|
Interface
|
USB Host and LAN
|
|
Wire Combinations
|
1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL,3Ø WYE,3Ø DELTA, 3Ø IT,
3Ø HIGH LEG, 3Ø OPEN LEG, 2-ELEMENT, 2 1/2-ELEMENT
|
|
Electrical Safety
|
IEC61010-1 ,Safety Degree: 600V CAT IV 1000V CAT III
|
