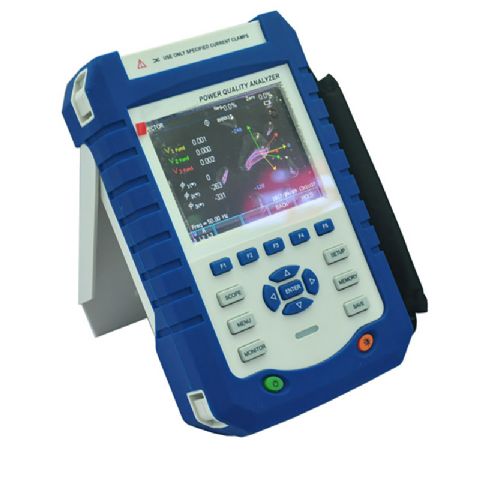

Analizadores Trifásicos de Calidad Eléctrica
Caracteristicas
-Seguridad: CAT III 1000V / CAT IV 600V
-Normas: IEC61000-4-30 (2008) clase S, EN50160 (2007)
-Operación fácil para capturar el problema de calidad de energía
-Monofásico 2 W / Monofásico 3 W / Trifásico 3 W / Trifásico 4 W
-Pantalla: Gráfico de ejecución, Gráfico de barras, Gráfico vectorial, Forma de onda, Lista de eventos, Lecturas.
-Tarjeta de memoria 8G para hacer el almacenamiento de datos de medición a largo plazo
-Admite puerto USB para conectarse a la PC y analizar los datos / capturas de pantalla copiados por U-disk
-Admite el puerto LAN para que el control remoto esté disponible, transfiere los datos de medición
-Detecte y resuelva problemas de calidad eléctrica
-Solo ha de conectar y ver el estado del sistema de alimentación de forma numérica o gráfica, y luego registrar los datos y compartirlos con sus compañeros de trabajo o asesores a través de capturas de pantalla, gráficos o informes
Especificaciones
|
|
Rango
|
Resolución
|
Accuracy
|
Voltage/Current/Frequency
|
|
|
Channel
|
3-phase line input + 1 neutral line input
|
Vrms(dc+ac)
|
1 ~ 1000Vrms
|
0.1Vrms
|
±5%
|
|
|
Vpk
|
1 ~ 1400Vpk
|
0.1Vpk
|
±5%
|
|
|
V(CF)
|
1.0 ~ >2.8
|
0.01
|
±5%
|
|
|
Arms
|
1~ 3000A
|
1A
|
±1% ± 5digits
|
|
|
1~ 300A
|
0.1A
|
±1% ± 5digits
|
|
|
Apk
|
1 ~ 4000Apk
|
1A
|
±1% ± 5digits
|
|
|
A(CF)
|
1 ~ 10
|
0.01
|
±5%
|
|
|
Frequency
|
42.5~57.5Hz(50Hz nominal)
|
0.01Hz
|
±0.01%
|
|
|
51~69Hz(60Hz nominal)
|
0.01Hz
|
±0.01%
|
|
|
Dips & Swells
|
|
|
Vrms1/2
|
0 ~ 200% of nominal voltage
|
0.1Vrms
|
±1%
|
|
|
Arms1/2
|
1 ~ 3000A
|
1A
|
±1% ±5 counts
|
|
|
1 ~ 300A
|
0.1A
|
±1% ±5 counts
|
|
|
Threshold levels
|
Programmable thresholds in percent of nominal voltage
Event detection based upon ½ cycle rms voltages
Captures Dips, Swells Interruptions and Rapid Voltage Changes
|
|
|
Duration
|
hhh,mm,ss,mmm
|
0.5 cycle
|
1 cycle
|
|
|
Harmonic
|
|
|
Harmonic Order
|
1 ~ 50
|
|
|
|
|
Inter-Harmonic Order
|
1 ~ 49
|
|
|
|
|
Voltage
|
0.0 ~ 100.0%
|
0.1%
|
±0.1% ± nx0.1%
|
|
|
Current
|
0.0 ~ 100.0%
|
0.1%
|
±0.1% ± nx0.1%
|
|
|
THD
|
0.0 ~ 100.0%
|
0.1%
|
±2.5%
|
|
|
DC Relative
|
0.0 ~ 100.0%
|
0.1%
|
±2%
|
|
|
Frequency
|
0 ~ 3500Hz
|
1Hz
|
1Hz
|
|
|
Phase
|
-360° ~ 0°
|
1°
|
± nx1.5°
|
|
|
Power And Energy
|
|
|
Active Power/Apparent Power/Reactive Power
|
1.0 ~ 20.00MW
|
0.1kW
|
±1.5±10 counts
|
|
|
|
|
Energy
|
0.00kWh ~ 200GWh
|
10Wh
|
±1.5±10 counts
|
|
|
Power Factor
|
0 ~ 1
|
0.01
|
±0.03
|
|
|
Flicker
|
|
|
Pst(1min),Pst,Plt,PF5
|
0.00 ~ 20.00
|
0.01
|
±5%
|
|
|
Unbalance
|
|
|
Voltage
|
0.0 ~ 5.0%
|
0.1%
|
±0.5%
|
|
|
Current
|
0.0 ~ 20.0%
|
0.1%
|
±1%
|
|
|
Voltage Phase Angle
|
-360° ~ 0°
|
1°
|
±2digits
|
|
|
Current Phase Angle
|
-360° ~ 0°
|
1°
|
±5digits
|
|
|
Voltage Transient
|
|
|
Vpk
|
±6000Vpk
|
1V
|
±15%
|
|
|
Vrms
|
10 ~ 1000Vrms
|
1V
|
±2.5%
|
|
|
Min. Tested Time
|
50us
|
|
|
Sampling Rate
|
20kS/s
|
|
|
Inrush Current
|
|
|
Arms(AC+DC)
|
0~3000Arms
|
0.1
|
±1% ± 5digits
|
|
|
Inrush Duration
|
6s ~ 32min selectable
|
10ms
|
±20ms
|
|
|
Logger
|
|
|
Recording
|
Parameter, duration time and time interval can be set by user, which can be export on PC
|
|
|
Memory
|
8G
|
|
|
Max. recording time
|
1 year
|
|
|
System Monitor
|
|
|
Parameters
|
Vrms,Arms,Harmonic Volts,THD Volts,Plt,Vrms1/2,Arms1/2,Vneg,Hz,dips and swells, unbalance
|
|
|
Record Time
|
2h ~ 7days
|
|
|
Record Event Number
|
>10000
|
|
|
Limits
|
According EN50160 or customer definable
|
|
|
General Characteristics
|
|
|
Power
|
AC220V(1±10%), 50Hz(1±5%), ≤10VA
|
|
|
Interface
|
USB_HOST, LAN
|
|
|
Display
|
5.6 TFT LCD, 320*240
|
|
|
Battery
|
7.4V, 4.4Ah, > 7 hours working time
|
|
|
Dimension & Weight
|
262×173×66mm, 1.6kg
|
|
Package
|
Voltage Test Leads
|
3 meter long x 5
|
|
Alligator Clips
|
5
|
|
External DC Adaptor
|
1 pcs
|
|
Software CD, Users Manual
|
1 x each
|
|
Flexi CT Clamps
|
300A / 3000 A x 4
|
