Cámara Termográfica China
Una cámara termográfica a menudo crea una imagen basada en la intensidad de las ondas infrarrojas que llama la atención de sus sensores. La imagen puede mostrar donde se encuentra, una fuente de calor y cuánto calor está produciendo respecto a los objetos alrededor de ella. Ser capaz de detectar las intensidades superiores e inferiores de infrarrojos puede ser útil en una variedad de campos como la medicina, la aplicación de la ley, la arquitectura y la arqueología.
|
Model
|
UTI160B
|
|
Imaging performance
|
|
Field of view / minimum imaging distance
|
20°X15°/0.1m
|
|
Spatial resolution
|
2.2mrad
|
|
Thermal sensitivity
|
≤0.08°@30°℃
|
|
Detector Type
|
Uncooled
|
|
Resolution
|
160X120
|
|
Working band
|
8~14um
|
|
Focus Mode
|
Manual
|
|
Image display
|
|
Image frame rate
|
NTSC (60HZ) orPAL (50HZ) full-motion output
|
|
LCD
|
3.5 TFT screen
|
|
Palette
|
A variety of pseudo-color standard display (such as iron oxide red, anti-red iron oxide, black hot, incandescent, color, anti-plume red)
|
|
Temperature function
|
|
Temperature range
|
-20 to +300 °℃
|
|
Temperature measurement accuracy
|
± 2 °℃, ± 2% (of reading in ± 30 °℃)
|
|
Temperature measurement mode
|
Point (a movable point) or automatically set the high / low temperature region the real-time tracking feature.
|
|
Parameter correction
|
Emissivity correction: 0.1 to 1.0 adjustable emissivity (0.01 steps) Fixed: ambient temperature, distance,
|
|
High / low temperature capture / alarm functions
|
√
|
|
Image storage
|
PC Card Capacity: Storage capacity: 2GB mobile minisd card (can store up to 16,000 standard infrared thermal image) file formats: the UIR
|
|
Software analysis capabilities
|
Detailed image processing and analysis capabilities: You can quickly generate reports automatically, can be converted to WORD document, Chinese / English interface, you can query historical data
|
|
Weight / Color
|
Weight: <0.60Kg / Body Color: Red + Gray
|
|
Battery system
|
The battery lasts about time: ≥ 2.5 hours
|
|
Battery charging time: ≤ 1.5 hours
|
|
Charger power supply: voltage 190V ~ 250V Frequency 50Hz
|
|
Environmental requirements
|
Operating temperature: -15 °℃ ~ +50 °℃
|
|
Relative humidity: ≤ 95%
|
|
Storage temperature: -40 ° C to +70 ° C
|
|
Degree of protection
|
Comply with the IP54 industrial standard
|
|
Earthquake resistance
|
Earthquake resistance: 2.5g
|
|
Impact
|
Shock: 25g
|
|
Immunity to electromagnetic interference
|
IEC60960: 1991 + A1: 1992, A2: 1993, A3: 1995, A4: 1996
|
Package Includes:

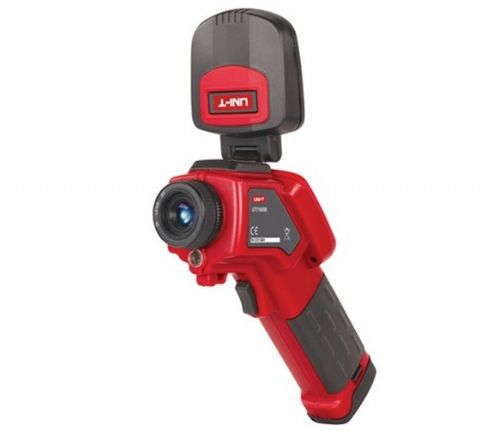

1 x UTi160B Infrared Thermal Imager
1 x Battery
1 x Charger
1 x 2G Memory Card
1 x Reader
1 x Lens cap
1 x Carry case
