China Portátil Medidor de Correntes Parasitas
Zoom Navegar
Produtos Nome: China Portátil Medidor de Correntes Parasitas
Produtos Números: EEDI-101
Produtos Especificaciones: 6.9%IACS—110%IACS
Produtos Observación: 60 KHz
Produtos Clase:Instrumentos de Medição > Instrumentos NDT > Ensaio por Correntes Parasitas
Produtos Detalles
【Tempo:2011-10-25 Navegar:】【Fonte: Grande Médio Pequeno】【Imprimir】【Fechar

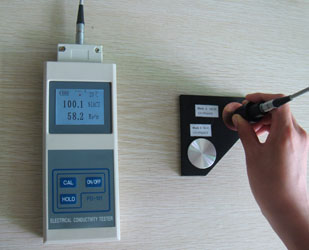

Digital Portable Eddy Current Electrical Conductivity Meter ia a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separatequality controlmaterial state check and so on. It uses the electromagnetism testing principle. Testing objects focus on non-ferromagnetic material.
Applications
Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.
In the aerospace and automotive industriesmonitor the process of heat treatment, the strength and hardness of aluminum alloy.
Test the conductivity aluminum when it has not been oxidized.
Test the purity grade of materials.
Test materials resistivity.
      Material Thermal Performance analysis
Features
The meter uses 60 KHz (aviation industry standard) to inspirit.
The testing data can be read in two kinds of unit: %IACS and MS/m.
Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.
It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.
The design of the meter is more advantages: user can replace the probe in the outdoor, don’t need to return to the company to adjust the probe into matching the meter.
It can hold measurement data.
NAME
CONTENT
Measurement technology
Eddy current
Operating frequency
60KHz
Display screen
Monochrome
L*B*H
180*75*30 mm
Instrument case
Anti-intense impactwater-proofing polyester.
Weight
290g
Power supply
High capacity, high performance lithium polymer battery
 Measuring range
6.9%IACS—110%IACS(4.0 MS/m -64MS/m)
Distinguishing rate
0.1% IACS
Measuring accuracy
0°C to 45°C
23%IACS   ±0.1%IACS
100%IACS  ±0.3%IACS
Temperature compensation
Automatic compensation to the value of 20 .
Normal work environment
Relative humidity
095%
Operating temperature
050
Language
English
Fitting
Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter.
Probe
Diameter:12.7mm
Applicable to minimum measuring area diameter at 60KHz is10mm.

Note: The conductivity measurements automatically rectified to the value at 20
