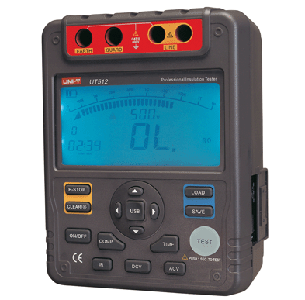

China Testador de Isolamento de Resistência UT512
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| Insulation Resistance |
0.5MΩ ~100GΩ |
±(3%+5) |
| Testing Voltage |
500V/1000V/1500V/2500V |
0~20% |
| DC Voltage |
600V |
±(2%+5) |
| AC Voltage |
600V |
±(2%+5) |
| Special Functions |
|
|
| Auto Ranging |
|
YES |
| Short Circuit Current |
|
<1.8mA |
| Data Logging |
|
18 |
| Data Recall |
|
YES |
| Sleep Mode |
|
YES |
| Polarization index (PI) |
|
YES |
| Dielectric Absorption(DAR) |
|
YES |
| Timer |
Around 15 minutes |
YES |
| Compare |
|
YES |
| Battery Display |
|
YES |
| White Display Backlight |
|
YES |
|
Over Range and High
Voltage Warning
|
|
YES |
| USB |
|
YES |
| Max. Display |
9999 |
YES |
| Analogue Bar Graph |
|
YES
|
GENERAL CHARACTERISTICS
| Power |
1.5V Alkaline Battery(LR14)×8 |
| LCD Size |
123 mm x 58 mm |
| Product Color |
Red and Grey |
| Product Net Weight |
1.8Kg |
| Product Size |
202×155×94mm |
| Standard Accessories |
2 pcs of one plug test lead to one alligator clip (black and Green), 1pc of two plugs test lead to one alligator clip (Red), Batteries, English Manual , Tool Box, USB Interface Cable, Software |
| Optional Accessories* |
Power Adapter |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
4 pcs |
| Standard Carton Measurement |
525 × 335 × 345mm (0.061 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
18kg |
