Gausímetro China
Detector de radiación electromagnética de mano par determinar la radiación en Tesla o micro Gauss.

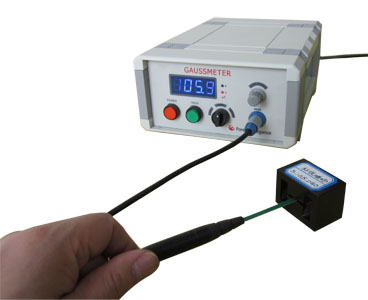

Gaussímetro is based on the Hall effect magnetic field strength of the latest developments in instrumentation, the design of desktop-type Gauss meter. Maximum range 330.0mT and 3000mT two tranches, the minimum basic error of 1.0%. Test probe connectors is imported, stable and reliable connection.
GAUSSMETER is based on the Hall effect magnetic field strength of the latest developments in instrumentation, the design of desktop-type Gauss meter. Maximum range 330.0mT and 3000mT two tranches, the minimum basic error of 1.0%. Test probe connectors is imported, stable and reliable connection.
Application:
1. Magnetic surface magnetic field measurement,
2. DC coil magnetic field,
3. DC electromagnet gap magnetic field measurement.
Features:
1. The bright blue LCD meter display, with wide test range;
2. Display directly the N / S pole of tested surface;
3. With the probe calibration automatically, the users do not need to calibrate the probe with the calibration magnet when replacing the probe.
4. using imported GaAs hall sensor chip components, accuracy and linearity reached a higher level.
Technical Parameters:
|
Power Supply
|
AC220V (or specified)
|
|
Measuring Range
|
0-±300mT,0-±3000mT two gears
|
|
Accuracy
|
More than 1.0% (full scale)
|
|
Resolution
|
0.1 mT
|
|
Working Condition
|
Temp.: 0~50ºC, humidity:35~80%
|
|

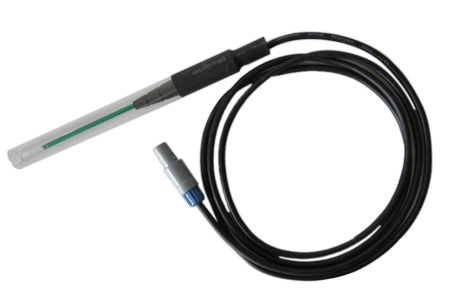

Probe
|
0.32mm(D)×1mm(W) Senstive area:0.2x0.2mm
|
|
Dimension
|
250mm×180mm×100mm
|
|
Weight
|
1.2 kgs
|
Características Generales:
• Medidor de campo electromagnético diseñado para proveer al usuario un manera rápida,
• confiable y fácil de medir niveles de radiación de campos electromagnéticos cerca de líneas de alta tensión, aparatos caseros e industriales.
• El medidor de campo electromagnético es un instrumento conveniente y portátil diseñado y
• calibrado para medir radiación de campos electromagnéticos en distintos anchos de banda.
• Muestra mediciones en micro Tesla y milli Gauss en el mismo medidor
• Funciones de Data hold y Peak hold
• Computadora en línea y función de Datalogger
