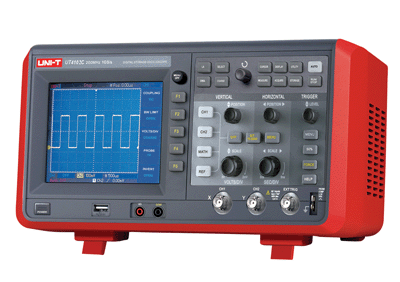

| Producto Nombre: Osciloscopio Digital UTD4102C |
| Producto Números: UTD4102C |
| Producto Especificaciones: 2GS/s sample rate, 100MHz |
| Producto Unidad: Full colour LCD, 2 channel |
| Producto Observación: DSO |
| Producto Clase:Instrumenos de Medicion > Instrumentos de Medida Eléctricos > Osciloscopio |
|
 Producto Detalles
SPECIFICATIONS
| Feature |
UTD4102C |
| Bandwidth |
100 MHz |
| Rise Time |
≤3.5 ns |
| Sample Range |
2GS/s |
| Vertical Sensitivity |
1mV ~ 10V/div |
| Record Length (Max) |
1024k |
| Sample Rate |
2GS/s |
| Scan Time Base |
5ns ~ 50s/div |
| Trigger Type |
Edge, Pulse, Video, Slope and LA |
| Automatic Waveform Measurements |
27 |
| Ports |
Standard: USB Device, USB Host; PASS/FAIL, LA interface, Multimeter interface, LAN and GPIB |
| Mathematics |
Add, Subtract, Multiply, FFT |
| Applications |
College Education, R&D, Electronic product assemble line, Industrial Control etc. |
| Display |
Digital Multimeter and Logic Analyzer |
GENERAL CHARACTERISTICS
| Power |
100 - 240VACRMS, 45Hz - 440Hz, CAT II |
| LCD Size |
Diagonal 145mm (5.7 inches) |
| Product Color |
Red and Grey |
| Product Net Weight |
3.8kg (Excluding packaging) |
| Product Size |
330mm x 165mm x 165mm |
| Standard Accessories |
Probe x 2 (1x, 10x switchable), Logic Analyzer Probe UT-P06, Current-to-Voltage Convertor module, (UT-M03, UT-M04)
Power Cord and English Manual |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
2 pcs |
| Standard Carton Measurement |
540 x 425 x 325mm (0.063 CBM Per Export Carton) |
| Standard Carton Gross Weight |
Around 13.7kg |
|
|
