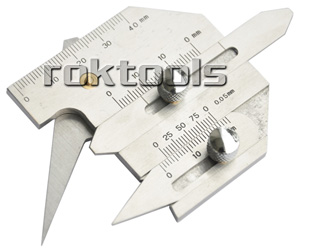

Universal Welding Gauge: consists of main scale, height gauge,undercut depth gauge, suitable for the detection of boilers, bridges, vessals, pressure vessels and pil pipes.
Apply to
Height of flat weld
Height of fillet weld bead
Thickness of fillet weld
Width of weld seam
Bevel angle of weldment
Undercut depth of weld seam
Gauge dimension 62x77 mm
Features:
Made of stainless steel.
Highly polished
Deburred everyside
Easy operation
Specification:
Height of fillet : 0-12mm
Thickness of fillet : 0-15mm
Bevel Angle of Weldment: ≤150°
Gap Size: 0.5-5mm
Undercut Depth of welding seam: 0-5mm
