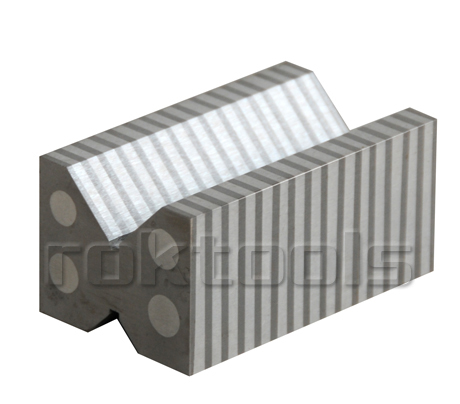

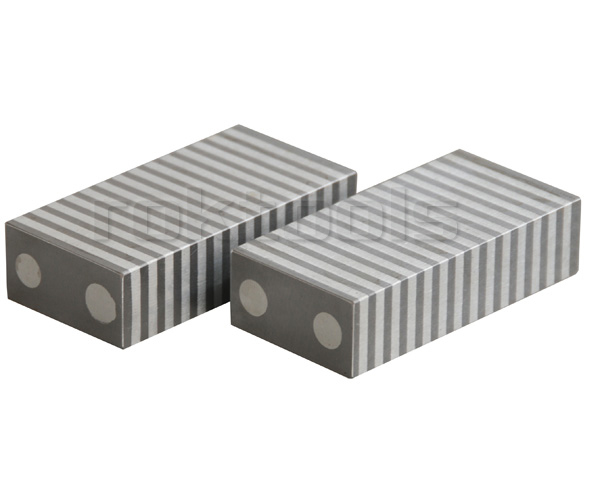

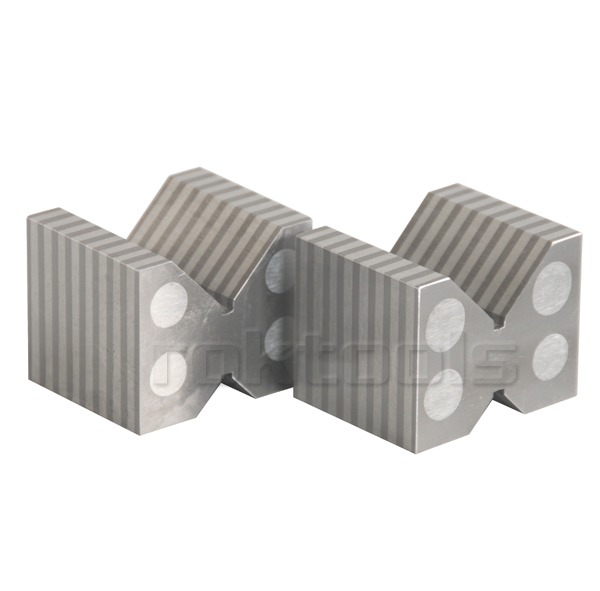

Magnetic Induction Block Applications:
The magnetic induction blocks are not magnetized themselves, They are used in combination with a magnetic chuck as an auxiliary tool to hold round bars. flank of plates that dificult to hold only by by chucking.
Magnetic Induction Block Features:
The blcoks are placed on a magnetic chuck to induce magnetism to hold workpieces, magnetism can be induced on two faces of the top and side or V face and side.
Made of steel and aluminium alloy
|
Order NO.
|
L
|
W
|
H
|
Weight(KG)
|
|
MIBL-2001
|
100
|
50
|
25
|
0.6Kg*2
|
|
MIBL-2002
|
100
|
60
|
485
|
1.2kg*1
|
|
MIBL-2003
|
50
|
60
|
48
|
0.6kg*2
|
