The Metric Trapezoidal Ring Gauge
Zoom Browse
Product Name: The Metric Trapezoidal Ring Gauge
Product Numbers: RG-307
Product Specifications: TR8-tr120
Product Remark: The Metric Trapezoidal Ring Gauge
Product Class:Measuring Tools > Thread Gauge > Trapezoidal Ring Gage
Product Details
【DateTime:2010-06-13 Browse:】【Font: Big Mid Small】【Print】【Close

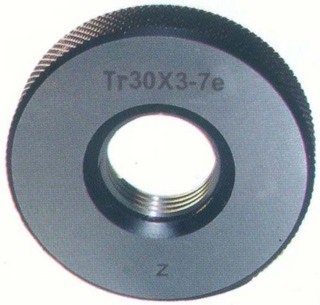

The Metric Trapezoidal Ring Gauge
 For translation motion in machine tools like lead screws, where rapid movement is required or in screw jacks, where load to be shared is more
conform:gb/t8124 7h、7e 、8e、9c
Specification:
Gage Code
pitch1
pitch2
pitch3
gage code
pitch1
pitch2
pitch3
tr8
1.5


tr42
3
7
10
tr9
1.5
2

tr44
3
7

tr10
1.5
2

tr46
3
8

tr11
2.0
3

tr48
3
8

tr12
2.0
3

tr50
3
8

tr14
2.0
3

tr55
3
8

tr16
2.0
4

tr60
3
9

tr18
2.0
4

tr65
3
9

tr20
2.0
4

tr70
4
10

tr22
3.0
5
8
tr75
4
10

tr24
3.0
4
8
tr80
4
10

tr26
3.0
5
8
tr85
4
10

tr28
3.0
5
8
tr90
4


tr30
3.0
6
10
tr95
4


tr32
3.0
6
10
tr100
4


tr34
3.0
6
10
tr110
4


tr36
3.0
6
10
tr120
6


tr38
3.0
7
10




tr40
3.0
7
10
