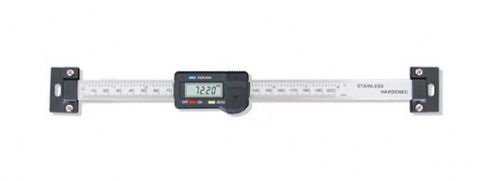

Horizontal Scale Units
Zoom Browse
Product Name: Horizontal Scale Units
Product Numbers: SU-012
Product Specifications: 0-1000mm
Product Remark: Digital Scale Units
Product Class:Measuring Tools > Scale Units > Horizontal Scale Units
Product Details
【DateTime:2008-11-06 Browse:】【Font: Big Mid Small】【Print】【Close
Digital Scale Units Features:
Designed to be installed on the machines and fixtures to measure the axial movement. Lets you measure and position any assembly on fixtures, presetting devices for tooling or machines. Flexible mounting for use in any position
• For fitting to  horizontal travels of milling or similar machines
• Hardened stainless steel
• Imperial and metric scales
• Sliding electronic digital unit
• Two decimal places for metric, three for imperial
• Fixing points
With data output. can be connected with PC
Order No.
Range
Resolution
Accuracy
    SU-012
100mm(4")
0.01mm/0.0005"
0.02mm
    SU-112
150mm(6")
0.01mm/0.0005"
0.02mm
    SU-212
200mm(8")
0.01mm/0.0005"
0.03mm
    SU-312
300mm(12")
0.01mm/0.0005"
0.04mm
    SU-412
450mm(16")"
0.01mm/0.0005"
0.05mm
    SU-512
500mm(20")
0.01mm/0.0005"
0.05mm
    SU-612
600MM(24")
0.01mm/0.0005"
0.08mm
    SU-812
800mm(32")
0.01mm/0.0005"
0.10mm
