6-100mm/0.275-4 inch 3 Point Internal Micrometer with Rods
Zoom Browse
Product Name: 6-100mm/0.275-4 inch 3 Point Internal Micrometer with Rods
Product Numbers: IM-321201
Product Specifications: Range 6-100mm/0.275-4 inch
Product Unit: Auto Power off
Product Remark: Large LCD display
Product Class:Measuring Tools > Micrometer > Three point Internal Micrometer
Product Details
【DateTime:2014-05-08 Browse:】【Font: Big Mid Small】【Print】【Close

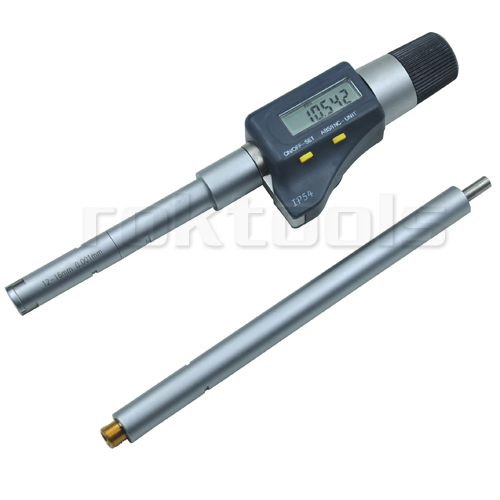

6-100mm/0.275-4 inch 3 Point Internal Micrometer with Rods
This versatile and self-centering 3 point internal micrometer are designed to simplified the accurate and efficient measurment of internal diameter, either through hole or blind hole.  Three carbide tipped anvils, evenly spaced at 120 degree apart, contact the internal wall surface and find the true alignment with the bore axis for accurate ID measurement.

No: IM-321201

Features:
Over 12mm Titanium-plated anvils(optional)
Large display.
Resulution: 0.001mm/0.00005inch

Metric
Range: 6-100mm
Order No.
Range
Accuracy
Setting Ring
Measuring Depth
Rods
IM-321201
6-8mm
0.004mm
6mm
54.5mm
100mm
IM-321202
8-10
0.004mm
8mm
54.5mm
100mm
IM-321203
10-12
0.004mm
10mm
54.5mm
100mm
IM-321204
12-16
0.004mm
16mm
80mm
150mm
IM-321205
16-20
0.004mm
16mm
80mm
150mm
IM-321206
20-25
0.004mm
25mm
90mm
150mm
IM-321207
25-30
0.004mm
25mm
90mm
150mm
IM-321208
30-40
0.004mm
40mm
97mm
150mm
IM-321209
40-50
0.005mm
40mm
97mm
150mm
IM-321210
50-63
0.005mm
62mm
114mm
150mm
IM-321211
62-75
0.005mm
62mm
114mm
150mm
IM-321212
75-88
0.005mm
87mm
114mm
150mm
IM-321213
87-100
0.005mm
87mm
114mm
150mm


Inch:
Range:0.275"-4"
Order No.
Range
Accuracy
Setting Ring
Measuring Depth
Rods
IM-321201Y
0.275-0.35"
0.00016"
0.275"
2.18"
4"
IM-321202Y
0.35-0.42"
0.00016"
0.35"
2.18"
4"
IM-321203Y
0.425-0.5"
0.00016"
0.5"
2.18"
4"
IM-321204Y
0.5-0.65"
0.00016"
0.65"
3.2"
6"
IM-321205Y
0.65-0.8"
0.00016"
0.65"
3.2"
6"
IM-321206Y
0.8-1"
0.00016"
1"
3.6"
6"
IM-321207Y
1-1.2"
0.00016"
1"
3.6"
6"
IM-321208Y
1.2-1.6"
0.00016"
1.6"
3.88"
6"
IM-321209Y
1.6-2"
0.0002"
1.6"
3.88"
6"
IM-321210Y
2-2.5"
0.0002"
2.5"
4.56"
6"
IM-321211Y
2.5-3"
0.0002"
2.5"
4.56"
6"
IM-321212Y
3-3.5"
0.0002"
3.5"
4.56"
6"
IM-321213Y
3.5-4"
0.0002"
3.5"
4.56"
6"

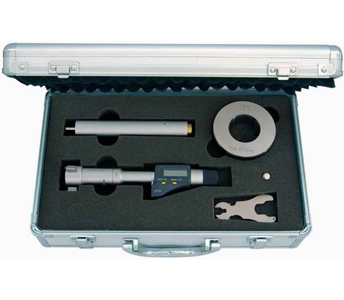

3 Point Internal Micrometer with Rods Package

Holtest micrometer
