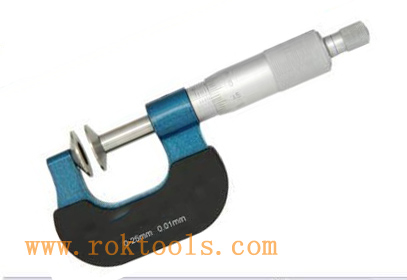

Tooth Thickness Micrometer_Disc Micrometer(Ratchet Stop), also known as disk micrometer, Disk measuring faces for measuring length of gears common normal and paper thickness.
Disk: 20mm(0-100mm) and 30mm(100-200mm)
Inner Disk: 8mm(0-100mm) and 12mm(100-200mm)
Thickness of disck : 0.7mm(0-100mm) and 0.9mm(100-200mm)
Spindle: 8mm
Micrometer length: 47mm
|
Order NO
|
Range
|
Diameter of Disk
|
Accuracy
|
|
DM-120801
|
0-25mm
|
20mm
|
+/-0.002mm
|
|
|
25-50mm
|
20mm
|
+/-0.002mm
|
|
|
50-75mm
|
20mm
|
+/-0.0025mm
|
|
|
75-100mm
|
20mm
|
+/-0.0025mm
|
|
|
100-125mm
|
30mm
|
+/-0.003mm
|
|
|
125-150mm
|
30mm
|
+/-0.003mm
|
|
|
150-175mm
|
30mm
|
+/-0.0035mm
|
|
|
175-200mm
|
30mm
|
+/-0.0035mm
|
