Rod Inside Micrometer
Zoom Browse
Product Name: Rod Inside Micrometer
Product Numbers: IM-220310
Product Specifications: rangel: 325-550
Product Unit: 0.01mm
Product Remark: China exporter, manufacturer, supplier
Product Class:Measuring Tools > Micrometer > Single Rod Inside Micrometer
Product Details
【DateTime:2012-08-08 Browse:】【Font: Big Mid Small】【Print】【Close

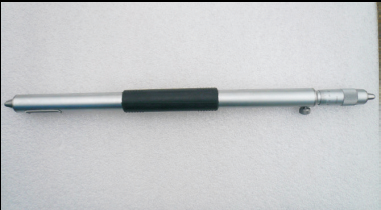

Rod Inside Micrometer
 The desired range is obtained by assembling rods and spacing collars to the micrometer head. Measuring rods are provided with a shoulder that is set accurately in the micrometer head and locked in position,When using the inside micrometer it is necessary to rotate the head end of the micrometer in an axially direction as well as up and down , all the while adjusting the head to the proper feel. Rotating the head in this manner assures that the micrometer is accurately centralized in the part. The inside micrometer, in most cases, is removed from the part while the actual reading is being done. For this reason the barrel lock is relatively snug to retain the reading.
Hardened and ground anvils
Order No.
Range(mm)
Accuracy
IM-220310
325-350
0.009
IM-220311
350-375
0.010
IM-220312
375-400
0.010
IM-220313
400-425
0.010
IM-220314
425-450
0.010
IM-220315
450-475
0.011
IM-220316
475-500
0.011
IM-220317
500-525
0.011
IM-220318
525-550
0.011
