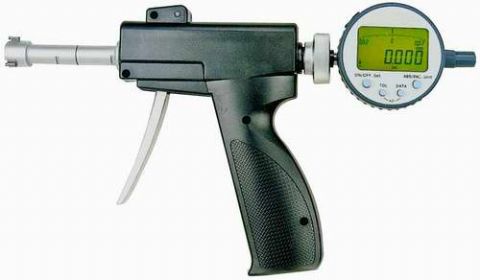

Pistol-grip Three Point Bore Gauges (metric)
Zoom Browse
Product Name: Pistol-grip Three Point Bore Gauges (metric)
Product Numbers: IM-322101
Product Specifications: Range 6-300mm
Product Unit: Fixing dimension of dial indicator: Φ8mm or 3/8"(Φ9.525mm)
Product Class:Measuring Tools > Micrometer > Pistol-grip Three Point Bore Gauge
Product Details
【DateTime:2014-08-15 Browse:】【Font: Big Mid Small】【Print】【Close
Pistol-grip Three Point Bore Gauges

Features:
-Single handed operation, right hand or left hand
-Self Centering 3 point For accuracy of internal dialmeter.
-Carbide measuring contact for long life span.
-Suppled ith Setting rings for zero ajust (for less than 100mm/4",

Order No.
Range(mm)
Accuracy
Setting Ring
Measuring Depth
A
IM-322101
6-8
0.004mm
6mm
50mm
1.5mm
IM-322102
8-10
0.004mm
8mm
50mm
1.5mm
IM-322103
10-12
0.004mm
10mm
50mm
1.5mm
IM-322104
12-16
0.004mm
16mm
65mm
0.5mm
IM-322105
16-20
0.004mm
16mm
65mm
0.5mm
IM-322106
20-25
0.004mm
25mm
91mm
0.5mm
IM-322107
25-30
0.004mm
25mm
91mm
0.5mm
IM-322108
30-40
0.004mm
40mm
97mm
0.5mm
IM-322109
40-50
0.005mm
40mm
97mm
0.5mm
IM-322110
50-63
0.005mm
62mm
112mm
0.5mm
IM-322111
62-75
0.005mm
62mm
112mm
0.5mm
IM-322112
75-88
0.005mm
87mm
112mm
0.5mm

 IM-322113

87-100

0.005mm

 87mm

112mm

0.5mm

 IM-322114

100-125

0.005mm

 112.5mm

 130mm

 0.5mm

 IM-322115

 125-150

0.005mm

 137.5mm

 130mm

 0.5mm

 IM-322116

150-175

0.005mm

162.5mm

 130mm

 0.5mm

 IM-322117

 175-200

 0.005mm

187.5mm

 130mm

 0.5mm

 IM-322118

200-225

0.007mm

212.5mm

130mm

 0.5mm

 IM-322119

 225-250

0.007mm

 237.5mm

 130mm

 0.5mm

 IM-322120

 250-275

 0.007mm

262.5mm

 130mm

 0.5mm

 IM-322121

 275-300

 0.007mm

 287.5mm

 130mm

 0.5mm
