Electronic Jaw Type Outside Micrometers
Zoom Browse

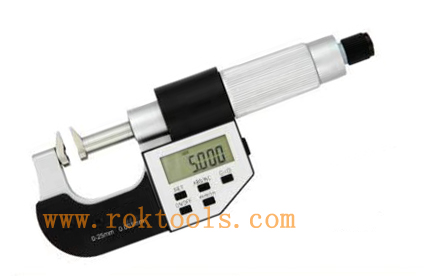

Product Name: Electronic Jaw Type Outside Micrometers
Product Numbers: DM-152201
Product Specifications: 0-200mm*0.001mm
Product Unit: Painted frame
Product Remark: China micrometer manufacturer
Product Class:Measuring Tools > Micrometer > Jaw Type Micrometer
Product Details
【DateTime:2013-09-02 Browse:】【Font: Big Mid Small】【Print】【Close
Electronic Jaw Type Outside Micrometers
specially designed for measuring gear tooth dimensions and hard to reach recesses and grooves, the jaw looks like the mouth of duck.

Non Rotating spindle
Ratchet thimble
Painted frame
Resolution 0.01mm
ABS function
inch/metric changeable
Data output
Power off

Order NO
Range
Resolution
Accuracy
DM-132201
0-25mm
0.001mm
+/-0.002mm
DM-152202
25-50mm
0.001mm
+/-0.002mm
DM-152203
50-75mm
0.001mm
 +/-0.0025mm
DM-152204
75-100mm
0.001mm
 +/-0.0025mm
DM-152205
100-125mm
0.001mm
 +/-0.003mm
DM-152206
125-150mm
0.001mm
 +/-0.003mm
DM-152207
150-175mm
0.001mm
+/-0.0035mm
DM-152208
175-200mm
0.001mm
 +/-0.0035mm
