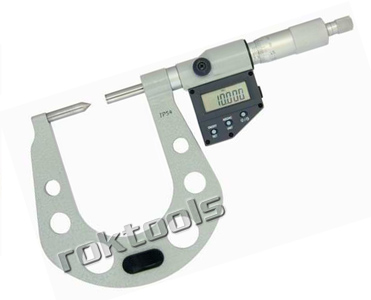

IP 54 Electronic Disc Brake Micrometer
Zoom Browse
Product Name: IP 54 Electronic Disc Brake Micrometer
Product Numbers: DM-132501
Product Specifications: 7.6-33mm, 25-50mm
Product Unit: 0.3-1.3" 1-2"
Product Remark: Resolutiom: 0.001mm/0.00005"
Product Class:Measuring Tools > Micrometer > Disc Brake Micrometers
Product Details
【DateTime:2013-06-29 Browse:】【Font: Big Mid Small】【Print】【Close
IP 54 Electronic Disc Brake Micrometer: Easy to use for measuring the depth of grooves on disc brakes,protected against dust, oil and water to IP54 standard
Carbide tipped anvil faces - one pointed, one flat
Measuring range: 7.6mm-33mm, 25-50mm,
Painted frame, with 88mm throat depth, Meets DIN 40050/IEC529
Resolutiom: 0.001mm/0.00005"
RS232 data output (optional)
SR44 or LR44 battery, automatic power off
Supplied with setting standards
METRIC
Order NO
Range
Resolution
DM-132501
7.6-33mm
0.001mm
DM-132502
25-50mm
0.001mm

INCH
Order NO
Range
Resolution
DM-132501Y
0.3-1.3"
0.00005"
DM-132502Y
1-2"
0.00005"
