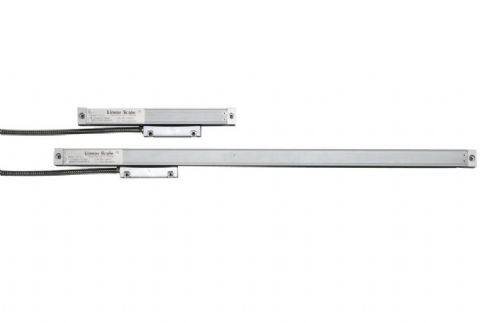

High Accuracy Optical Slim Linear Scale With 0.001 Resolution
Accuracy: ±3/±5/±10μm(20°C/68°F)
Bench marks:The grating period: 20um optical linear scale.
Grating system: The tansmissive and infrared optical measuring system, the infrared wave length is 880nm.
Reading head sliding system: vertical or 45°five precision bearing system
Specifcation:
--Sectional Dimensions(mm) 18x23
--Accuracy ±3/±5/±10um(20°C/68°F)
--Biggest Working Speed: 60m/min
--Zero Reference Point: 1 per 100mm
--Sealing Protection: IP55
--Resolution(um): 0.5/1/5
--Output signal: TTL/EIA-422-A/1Vpp
--Voltage: 5V/12V/24V/36V
--Cable: 3m
|
Order No
|
Range
|
Resolution
|
|
|
50-100mm
|
0.001mm
|
|
|
101-200mm
|
0.001mm
|
|
|
201-300mm
|
0.001mm
|
|
|
301-400mm
|
0.001mm
|
|
|
401-500mm
|
0.001mm
|
|
|
501-600mm
|
0.001mm
|
