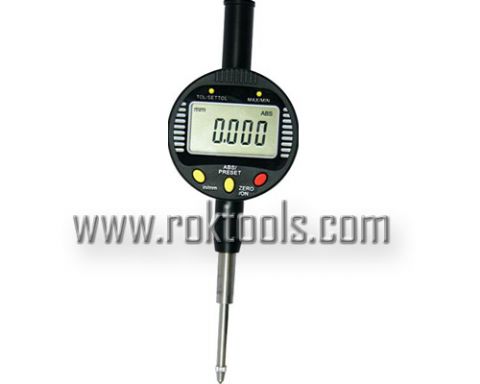

New type Digital Indicator Features:
1.manual/auto power off
2.preplace started position value,without reset before change the battery
3.counting converse
4.mm/in conversion
5.absolute and relative measurement
6.set zero at any position
7.TOL value setting
8.auto distinguish windage state
9.high-speed tracking maximum/minimum/extremum
10.run-out detector

11. with data output.

12. separated sensor and display

Technic Parameter:

display:broad screen display
reaction speed:1.5m/s
axis diameter:8mm(ISO/GB ) or 3/8(ANSI )
point gauge:with M2.5X0.45 screw thread horniness metal ball
         or with#4-48UNF screw thread horniness metal ball

Order No.	Range(mm)	Resolution(mm)	Accuracy(mm)	Mesuring Forces
EDI-401	0-12.7	0.01	0.02	less than 1N
EDI-401H	0-12.7	0.005	0.015	less than 1N
EDI-402	0-25.4	0.01	0.02	less than 1N
EDI-402H	0-25.4	0.005	0.015	less than 1N
EDI-403	0-50.8	0.01	0.02	less than 1N
EDI-403H	0-50.8	0.005	0.015	less than 1N
