Digital Height Gauges
Zoom Browse

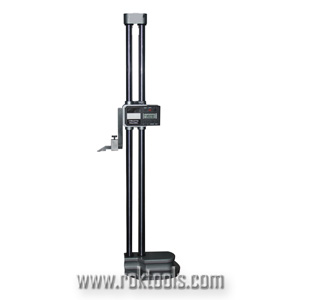

Product Name: Digital Height Gauges
Product Numbers: HG-321
Product Specifications: 0-600mm
Product Remark: Double Beam
Product Class:Measuring Tools > Height Gauges > Digital Height Gauges
Product Details
【DateTime:2008-11-12 Browse:】【Font: Big Mid Small】【Print】【Close
     a measuring device used either for determining the height of something, or for repetitious marking of items to be worked on. The former type of height gauge is often used in doctors surgeries to find the height of people.
Features:
1. Resolution: 0.01mm/0.001"
2. Height gages within 0-600mm/0-24" can be two beams, over 0-600mm/0-24" have three beams
3. Carbide-tipped scriber, stainless steel beam and base, with driving wheel
4. Buttons: metric-inch conversion, absolute and relative measurement, power off/on, data preset, set data
5. RS232 data output, SR44 battery, with spare battery, indicator holder is optional
Order NO.
Range
Resolution
Accuracy
HG-321
0~300mm/0~12"
0.01mm/0.0005"
0.04mm
HG-421
0~450mm/0~18"
0.01mm/0.0005"
0.05mm
HG-521
0~500mm/0~20"
0.01mm/0.0005"
0.05mm
HG-621
0~600mm/0~24"
0.01mm/0.0005"
0.05mm
