Micrometer Calibration Sets With Optical Flat
Zoom Browse
Product Name: Micrometer Calibration Sets With Optical Flat
Product Numbers: GB-52103
Product Specifications: 0.105-1.00
Product Unit: With Optical Flat
Product Remark: ASM Standard Gauge Block
Product Class:Measuring Tools > Gauge Block Pin Gauge > Setting Master
Product Details
【DateTime:2015-01-20 Browse:】【Font: Big Mid Small】【Print】【Close

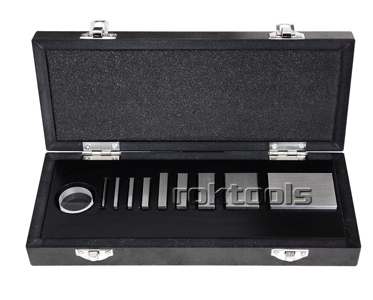

Micrometer Calibration Sets With Optical Flat
Part No: GB-52103
Description: The sets include a set of gauge block and optial flat. used to check 0-1 Inch or 0-25mm micrometers.  The blocks are selected to check the lead screw of the micrometer at different rotational positions of the micrometer spindle, A Calibration Master for In-House Calibration of External Micrometers. Hardened, Ground and Lapped High Grade Gage Blocks are fitted in a rigid housing which make external measurements very easy.
Features:
      ---- Set of 10 gage blocks and two optical flats verifies the measuring accuracy of micrometers with a 0 to 1" measuring range
      ----Gage blocks constructed of high-alloy steel artificially aged to ensure stability.
      ----One or Two Optical Flat included.


Part No  Piece/Set  ISO/DIN  Standard(ASM)  Specification
 GB-52103-11 11  Steel  0, 1
Size: .105, .210,.315, .420, .500, .605, .710, .815, 920,1.00,
1 Optical flat: 1 *.5125 Thickness, 0.000004 Flatness, 0.0002 parellel
 GB-52103-12 12  Steel  0, 1
 Size: .105, .210,.315, .420, .500, .605, .710, .815, 920,1.00,
2 Optical flat: 1 *.5125 Thickness,  0.000004 Flatness, 0.0002 parellel
 GB-52103-9 9  Steel  0, 1  Size: .625, .100, .125, .200, .250, .300, .500, 1.000&2.00"
 GB-52103-10 10  Steel  0, 1
 Size: .625, .100, .125, .200, .250, .300, .500, 1.000&2.00"
Optical flat: 1 *.5125 Thickness,  0.000004 Flatness, 0.0002 parellel
 GB-52103-11 11  Steel  0, 1 Size: .625, .100, .125, .200, .250, .300, .500, 1.000&2.00"
2 Optical flat: 1 *.5125 Thickness,  0.000004 Flatness, 0.0002 parellel
 GB-52103-8 8  Steel  0, 1  Size: 1, 2 ,3, 4, 5, 6, 7, 8
