Metric Pin Gauge Sets Without Handle
Zoom Browse
Product Name: Metric Pin Gauge Sets Without Handle
Product Numbers: GB-61101
Product Specifications: 0.30-20mm
Product Unit: Smooth finish 10 micro or better
Product Remark: Without Handle
Product Class:Measuring Tools > Gauge Block Pin Gauge > China Pin Gauge
Product Details
【DateTime:2015-03-02 Browse:】【Font: Big Mid Small】【Print】【Close
Metric Pin Gauge Sets Without Handle
Part NO: GB-61101
        PIN GAUGE is to measure and inspect the diameter of samll holes, it also can be used as a test bar for geometric deviations measurements. Used to Compare Hole and Slot Dimensions or Locations to Specific Tolerances;Measures Hole, Slot or Gap Sizes; Checks Distances Between Holes; Go/No-Go Gage
Features:
    ----Laser marking size, clearer reading
    ----Smooth finish 10 micro or better
    ----A must for checking hole diameter& distance between holes and hole locaion.
    ----With wooden Case
    ----Without Handle
    ----Hardness: 60/62HRC

Specification:

  Plus Minus   Without Handle without Handle
+/-0.002mm +0.005mm -0.005mm
Order No Order No Order No PCS Increment(mm) Range(mm)
GB-61101 GB-61201 GB-61301 71 0.01 0.30-1.00
GB-61102 GB-61202 GB-61302 100 0.01 1.01-2.0
GB-61103 GB-61203 GB-61303 100 0.01 2.01-3.00
GB-61104 GB-61204 GB-61304 100 0.01 3.01-4.00
GB-61105 GB-61205 GB-61305 100 0.01 4.01-5.00
GB-61106 GB-61206 GB-61306 100 0.01 5.01-6.00
GB-61107 GB-61207 GB-61307 100 0.01 6.01-7.00
GB-61108 GB-61208 GB-61308 100 0.01 7.01-8.00
GB-61109 GB-61209 GB-61309 100 0.01 8.01-9.00
GB-61110 GB-61210 GB-61310 100 0.01 9.01-10.00
GB-61111 GB-61211 GB-61311 98 0.1 0.30-10.00
GB-61112 GB-61212 GB-61312 101 0.1 10.00-20.00

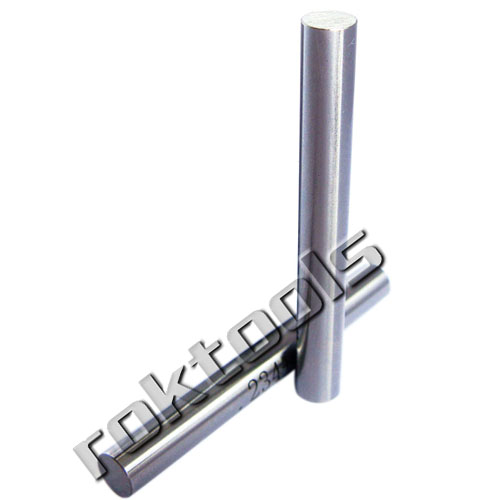

pin gauge

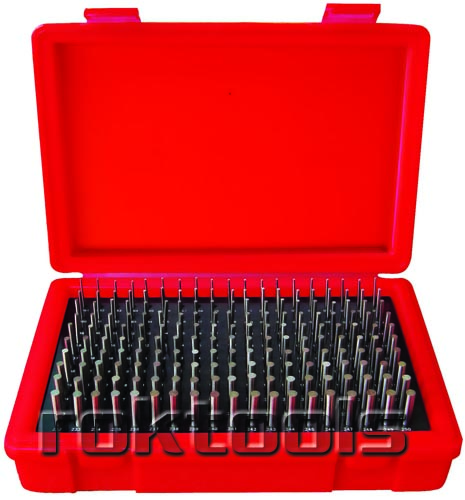

package
