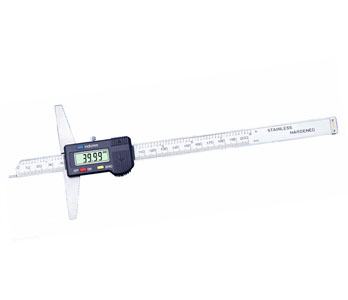

Electronic Digital Depth Gauge with Needle Tip
Zoom Browse
Product Name: Electronic Digital Depth Gauge with Needle Tip
Product Numbers: DG-162
Product Specifications: 0-150mm, 200mm, 300mm
Product Unit: Needle size: 5mm*2mm
Product Remark: For measure the Groove
Product Class:Measuring Tools > Depth Gauges > Digital Depth Gauges
Product Details
【DateTime:2014-06-23 Browse:】【Font: Big Mid Small】【Print】【Close
Electronic Digital Depth Gauge with Needle Tip
Part No: DG-162
This Gauge is different from the normal one. It has needled attached on the top of it. It can plunger in the small groove or hole to measure it.

FEATURES
* Power on/off
* In/mm conversion
* Zero-setting at any position
* Can measure the depth of narrow grooves and small noles,etc
* Data output.

Specifications:
Neeld size: 5mm*2mm
Range: 0-150mm, 200mm, 300mm
Base Width: 100/150mm

Order No
Rangel
Resolution
Accuracy
Width of Base
A(mm)
B
Φ
DG-162
0-150mm
0.01mm
+/-0.03mm
150mm
 100/150
 5
 2
DG-262
0-200mm
0.01mm
+/-0.03mm
150mm
 100/150
 5
 2
DG-362
0-300mm
0.01mm
+/-0.04mm
150mm
 100/150
 5
 2

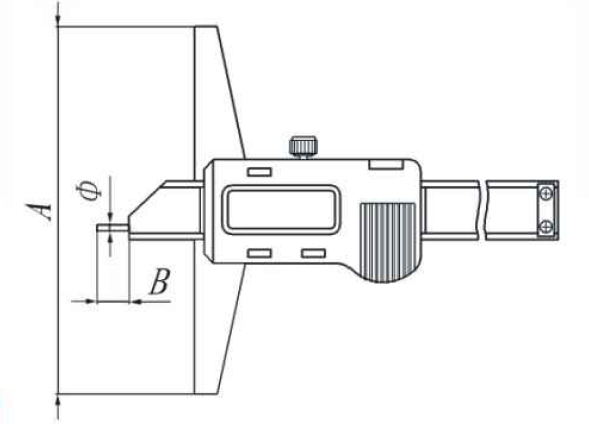

drawing for digital depth gauge
